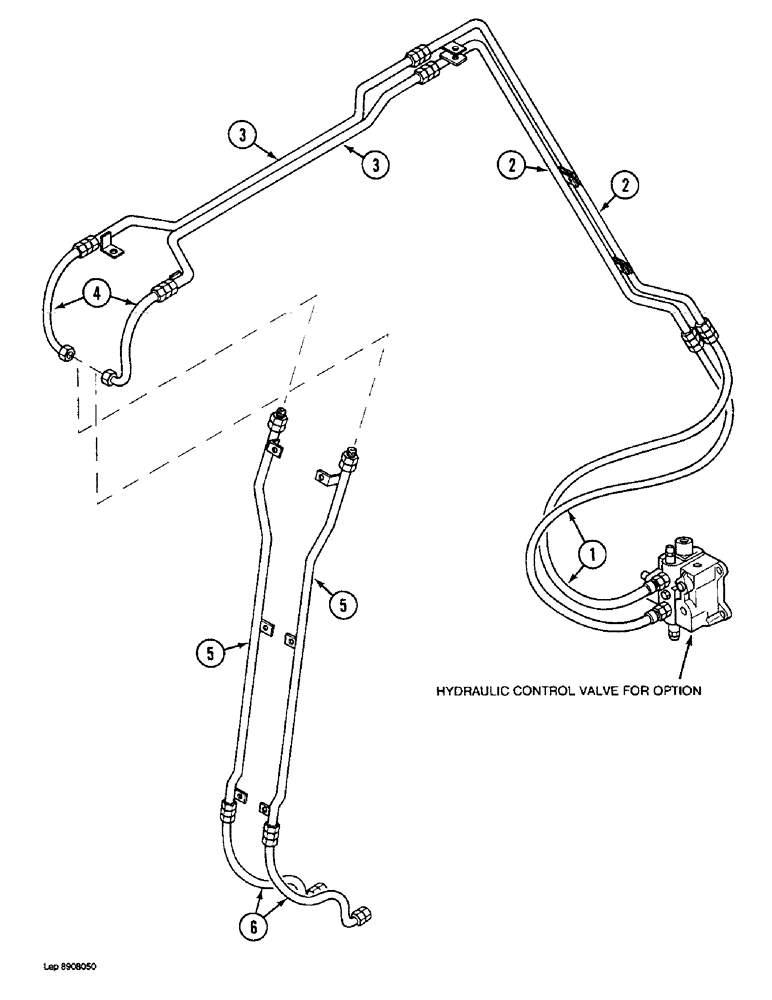

Запчасти Case 1088 (1-24) - PICTORIAL INDEX, OPTIONAL HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Hose, Optional Hydraulic Control Valve to Tube, Pages 8F-6, 8F-8

1шт.

2

Tube, Lower Port of Boom, Page 8F-10

1шт.

3

Tube, Upper Port of Boom, Page 8F-10

1шт.

4

Hoses, Lower Tubes to Upper Tubes, Page 8F-10

1шт.

5

Tube, at arm, Page 8F-12

1шт.

6

Hoses, Tubes at Arm to Optional Tools, Page 8F-12

1шт.
