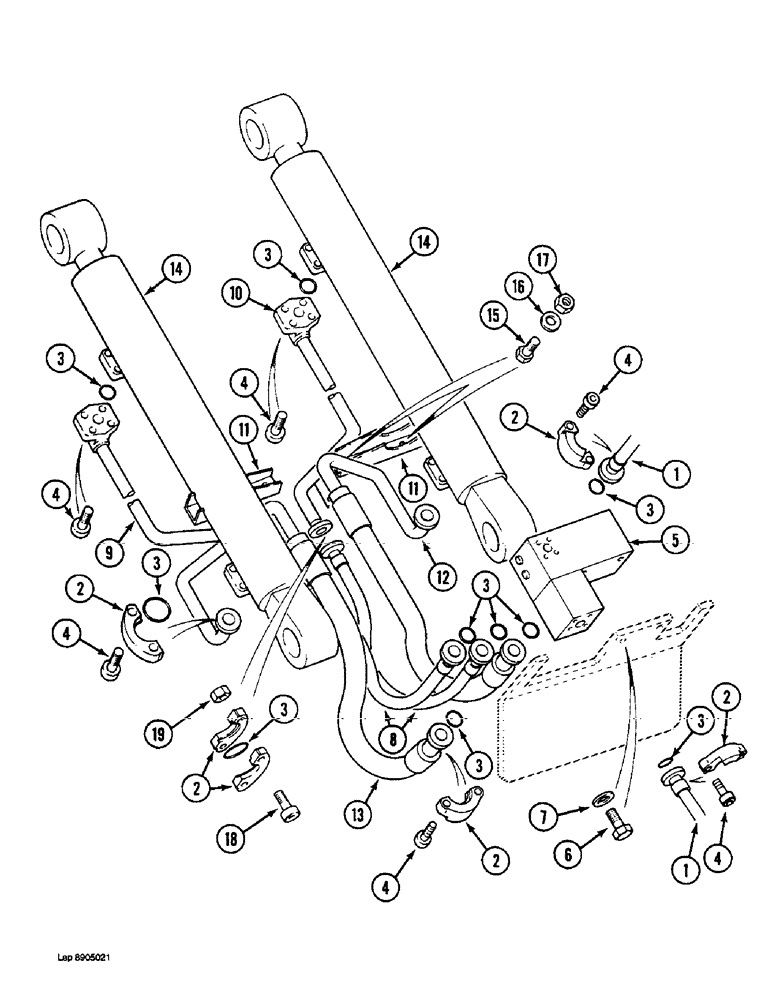

Запчасти Case 1088 (8G-06) - BOOM CYLINDER CIRCUIT, HOSES AT CYLINDER - ROD END (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from boom section of attachment control valve (See Figure 8C-2)

2шт.

2

P4024266

CLAMP

SPLIT FLANGE - hose flange

24шт.

3

P1130483

O-RING

- hose flange

12шт.

4

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

40шт.

5

REF

INSTRUCTION

BLOCK ASSEMBLY - hose manifold (See Figure 8G-10)

1шт.

6

P833894

SCREW

BOLT - hex, 20 mm x 60 mm

2шт.

7

P4328747

WASHER

SPACER - bolt

2шт.

8

P5431993

HOSE

- 31-1/2 inch long, manifold block to tubes of boom cylinder

2шт.

9

P6449043

PIPE

TUBE - hose to rod end of left-hand boom cylinder

1шт.

10

P6449042

PIPE

TUBE - hose to rod end of right-hand boom cylinder

1шт.

11

P1726062

SUPPORT

BRACKET - tubes at cylinder

2шт.

12

P6631922

HOSE

- manifold block to base end of right-hand boom cylinder

1шт.

13

P6631923

HOSE

- manifold block to base end of left-hand boom cylinder

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom (See Figure 8G-16 or 8G-18)

2шт.

15

P933839

SCREW

BOLT - hex, 10 mm x 35 mm, full-thread

4шт.

16

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

17

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

18

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

8шт.

19

86500689

NUT,M10 x 1.5, Cl 10

8шт.
