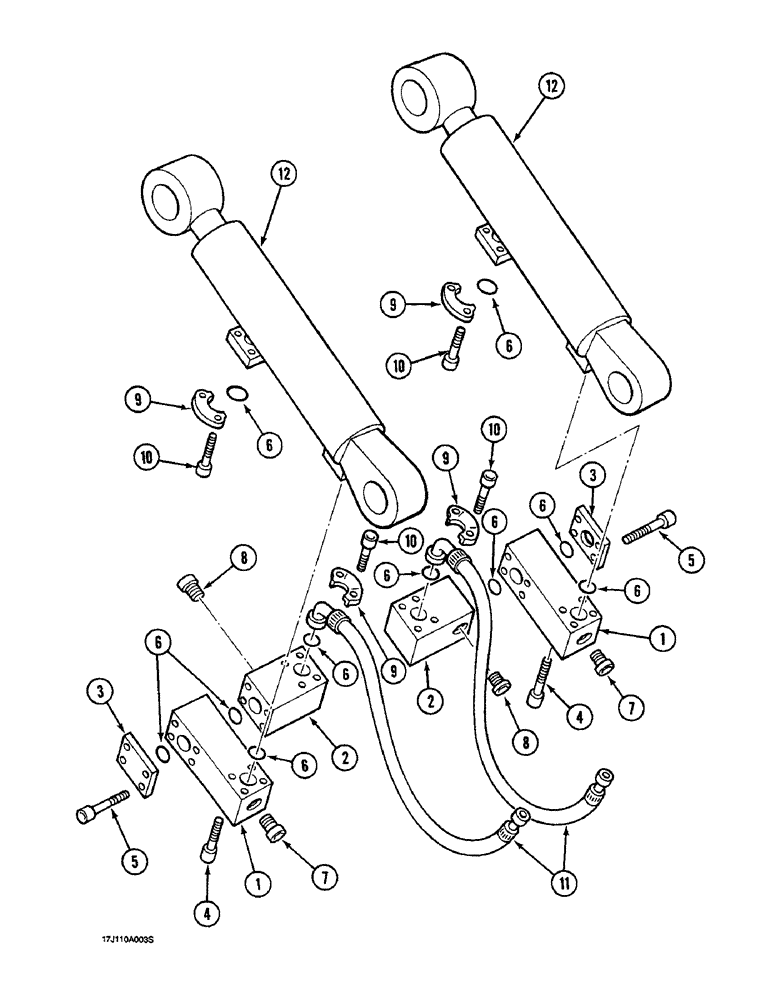

Запчасти Case 1088 (8G-04) - BOOM CYLINDER CIRCUIT, HOSES AT CYLINDER, P.I.N. FROM 72203 TO 72207 (08) - HYDRAULICS

1

P4223336

BLOCK ASSY.

BLOCK - manifold, at base end of boom cylinder

2шт.

2

P4223337

BLOCK ASSY.

BLOCK - adapter, hose to manifold block

2шт.

3

P4223335

LARGE PLATE

PLATE - cover, manifold block

2шт.

4

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm, grade 12.9

8шт.

5

P732969

SCREW

BOLT - hex socket, 10 mm x 100 mm, grade 12.9

8шт.

6

P1130483

O-RING

- hose flange and adapter block

10шт.

7

P2537413

PLUG

- manifold block

2шт.

P1145268

SEAL

- plug, not shown

1шт.

8

P2537447

PLUG

- block

2шт.

P7046042

SEAL

- plug, not shown

1шт.

9

P4024266

CLAMP

SPLIT FLANGE - hose flange

8шт.

10

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

11

P5431935

HOSE

- 24-13/16 inch long, manifold block to base end of boom cylinder

2шт.

12

REF

INSTRUCTION

CYLINDER ASSEMBLY - (See Figures 8G-14, 8G-16 or 8G-18)

2шт.
