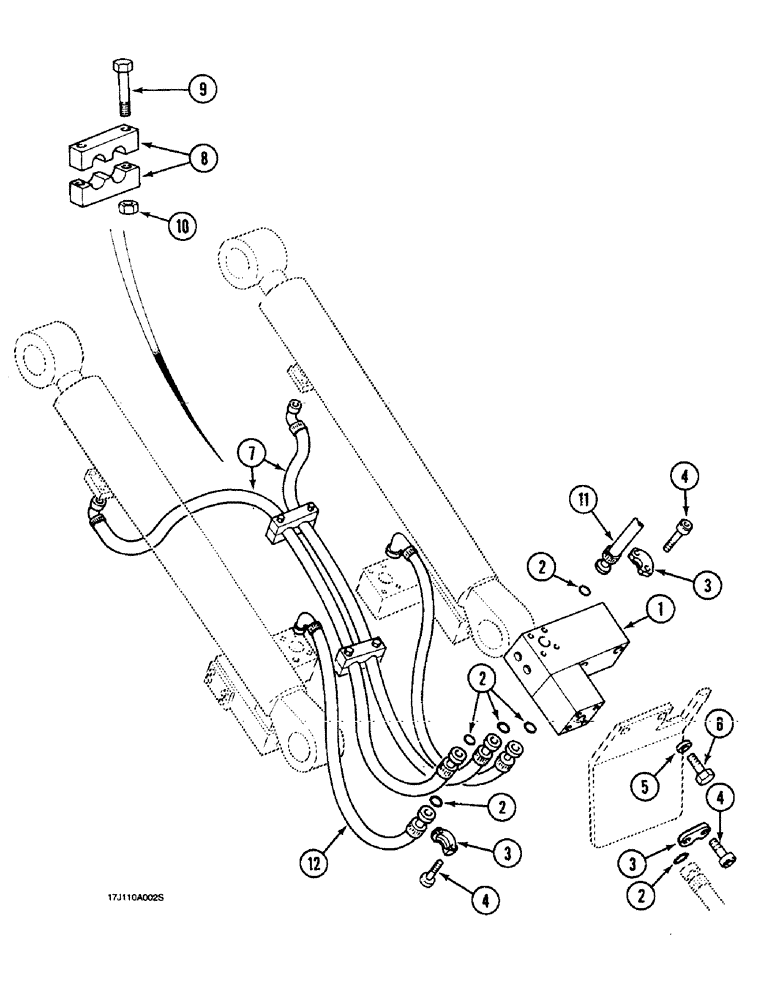

Запчасти Case 1088 (8G-02) - BOOM CYLINDER CIRCUIT, HOSES AT CYLINDER, P.I.N. FROM 72203 TO 72207 (08) - HYDRAULICS

1

REF

INSTRUCTION

BLOCK ASSEMBLY - hose manifold (See Figure 8G-10)

1шт.

2

P1130483

O-RING

- hose flange

6шт.

3

P4024266

CLAMP

SPLIT FLANGE - hose flange

12шт.

4

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

24шт.

5

P4328747

WASHER

SPACER - bolt

2шт.

6

P833894

SCREW

BOLT - hex, 20 mm x 60 mm

2шт.

7

P5931901

HOSE

- 78-3/4 inch long, manifold block to rod end of boom cylinder

2шт.

8

P4620379

SHIN

CLAMP - hose, two hose

2шт.

9

P933808

SCREW

BOLT - hex, 10 mm x 90 mm

2шт.

10

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

11

REF

INSTRUCTION

HOSE - from boom section of attachment control valve (See Figure 8C-2

1шт.

12

REF

INSTRUCTION

HOSE - manifold block to base end of boom cylinder (See Figure 8G-4)

2шт.
