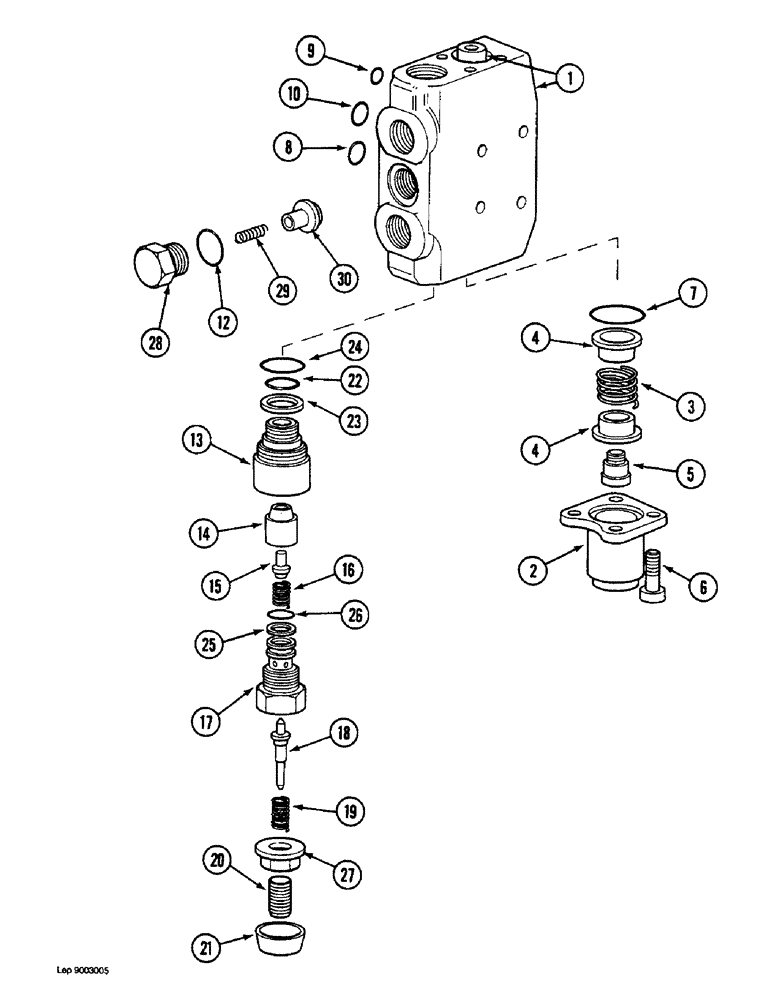

Запчасти Case 1088 (8F-22) - TURNTABLE LEVELER CONTROL VALVE, P.I.N. FROM 106901 AND AFTER (08) - HYDRAULICS

P3843632

ELEMENT

CONTROL VALVE ASSEMBLY - leveler, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

P3843633

SPARE PART SET

CONTROL VALVE ASSEMBLY - leveler, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - spool

2шт.

3

NSS

NOT SOLD SEPARAT

SPRING - spool

2шт.

4

NSS

NOT SOLD SEPARAT

SEAT - spring

4шт.

5

NSS

NOT SOLD SEPARAT

BOLT - special, spool end

2шт.

6

NSS

NOT SOLD SEPARAT

BOLT - hex socket head, spool cover

8шт.

7

NSS

NOT SOLD SEPARAT

O-RING - cover seal

2шт.

Part of seals repair kit P/N P5949603

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - section seal

1шт.

Part of seals repair kit P/N P5949603

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - section seal

1шт.

Part of seals repair kit P/N P5949603

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - section seal

1шт.

Part of seals repair kit P/N P5949603

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - load check seal

1шт.

Part of seals repair kit P/N P5949603

1шт.

P3143630

CARTRIDGE

VALVE ASSEMBLY - relief valve, Includes: Ref. 13 - 27

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

16

P1038221

SPRING

- poppet

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - plunger

1шт.

18

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

19

P1038223

SPRING

- plunger

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW - adjusting, relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

COVER - adjusting screw

1шт.

P5449633

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 22 - 27

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - housing, small

1шт.

23

NSS

NOT SOLD SEPARAT

BACKUP RING - O-ring

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - housing, large

1шт.

25

NSS

NOT SOLD SEPARAT

BACKUP RING - body O-ring

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - body

1шт.

27

NSS

NOT SOLD SEPARAT

LOCK NUT - adjusting screw

1шт.

P3743368

VALVE POPPET

LOAD CHECK ASSEMBLY - control valve for options, Includes: Ref. 28 - 30

1шт.

28

P3037473

PLUG

- lock check valve

1шт.

29

P38283

SPRING

- poppet

1шт.

30

P2643624

VALVE POPPET

POPPET - load check

1шт.

P5949603

SEAL PACKAGE

KIT - repair, seals, Includes: Ref. 7 thru 12

1шт.
