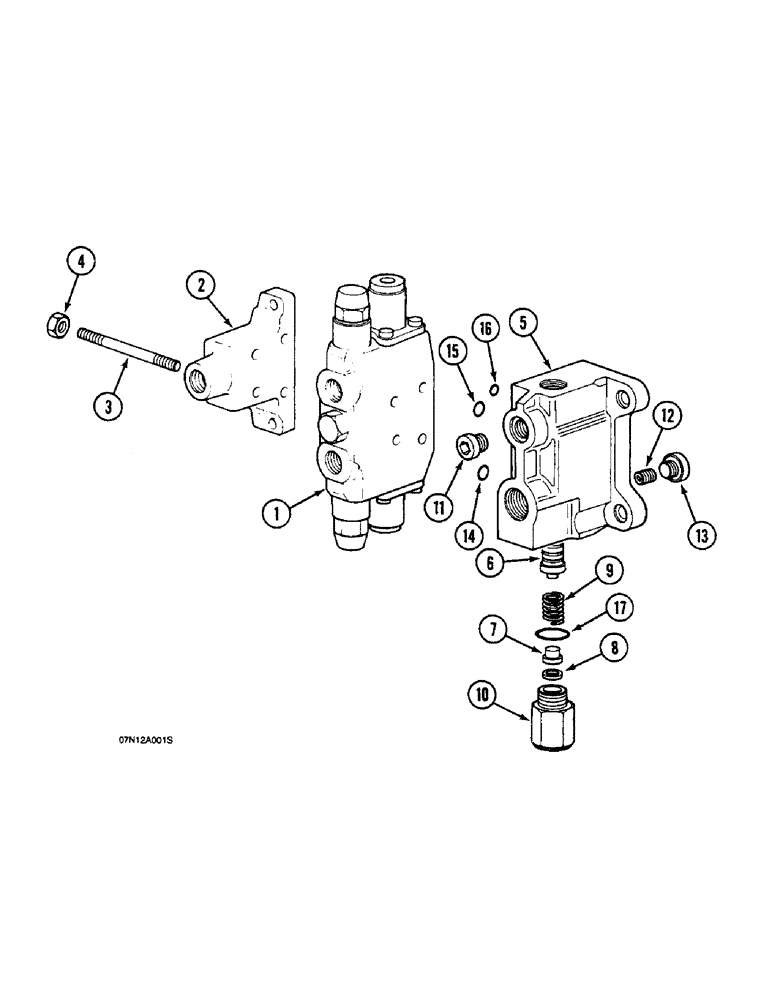

Запчасти Case 1088 (8F-14) - CONTROL VALVE FOR OPTIONS, P.I.N. FROM 19801 TO XXXXX (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - options, (See Figure 8F-18)

1шт.

2

P3143629

VALVE, CONTROL

SECTION ASSEMBLY - outlet, control valve for options

1шт.

3

P144993

TRUSS ROD

STUD - control valve

4шт.

4

P2434529

NUT

- hex, self-locking, 8 mm

4шт.

P3143691

VALVE, CONTROL

SECTION ASSEMBLY - inlet, control valve for options, (See T.I.N. 3097), Includes: Ref. 5 - 17

1шт.

5

NSS

NOT SOLD SEPARAT

INLET SECTION - option control valve

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - option control valve

1шт.

P5949650

SPARE PART SET

KIT - repair, seat, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

8

P5449631

KIT

SHIM SET - spring tension

1шт.

9

P38296

SPRING

- spool

1шт.

10

P2340466

CAP

COVER - valve spool

2шт.

11

P2537447

PLUG

- valve body

1шт.

P7046042

SEAL

- plug, not shown

1шт.

12

P3743201

JET

ORIFICE - valve body

1шт.

13

P2537448

PLUG

- orifice

1шт.

P2230441

SEAL

- plug

1шт.

P5449630

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - section seal

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - section seal

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - section seal

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - valve body to end cover

1шт.
