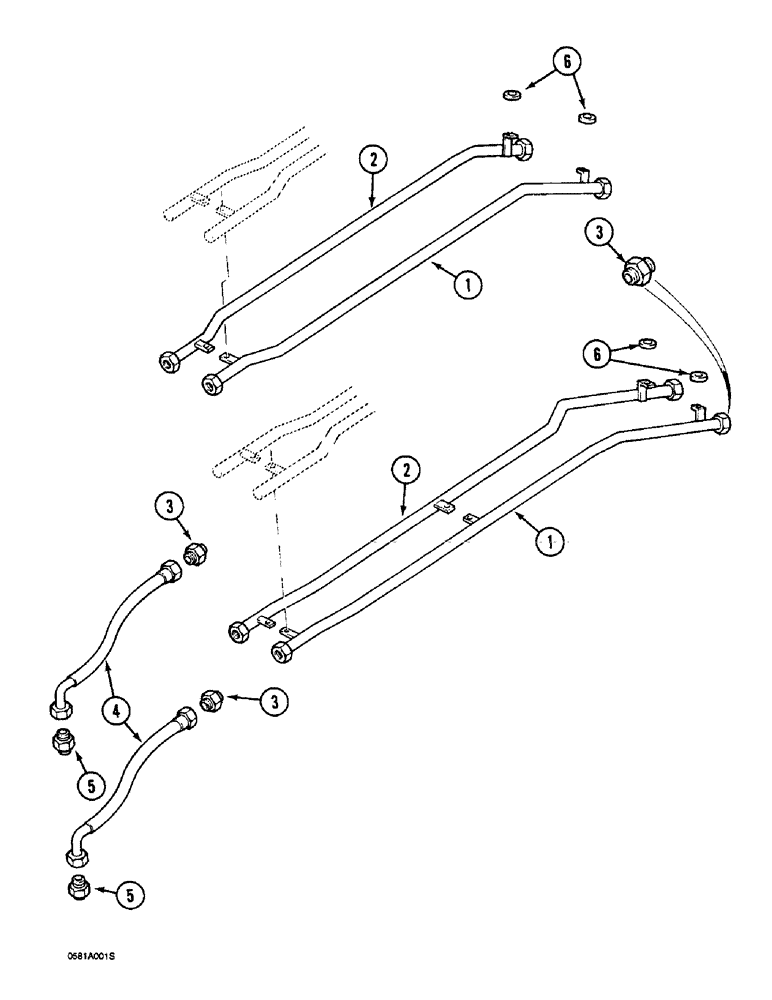

Запчасти Case 1088 (8F-12) - HYDRAULIC CIRCUIT FOR OPTIONS - 2.20 M AND 2.80 M ARMS, TUBES AT ARM FOR WRIST-O-TWIST/ROTATOR (08) - HYDRAULICS

1

P3550112

PIPE

TUBE - for options, left-hand side of 2.20 m arm

1шт.

1

P6849153

PIPE

TUBE - for options, left-hand side of 2.80 m arm

1шт.

2

P3550113

PIPE

TUBE - for options, right-hand side of 2.20 m arm

1шт.

2

P6849154

PIPE

TUBE - for options, right-hand side of 2.80 m arm

1шт.

3

P3237537

UNION

ADAPTER - straight

4шт.

4

P3731988

HOSE

- 2000 mm long, to optional attachment

2шт.

5

P4037518

UNION

ADAPTER - straight

2шт.

6

P4328796

WASHER

SPACER - bolt, 7 mm thick

2шт.
