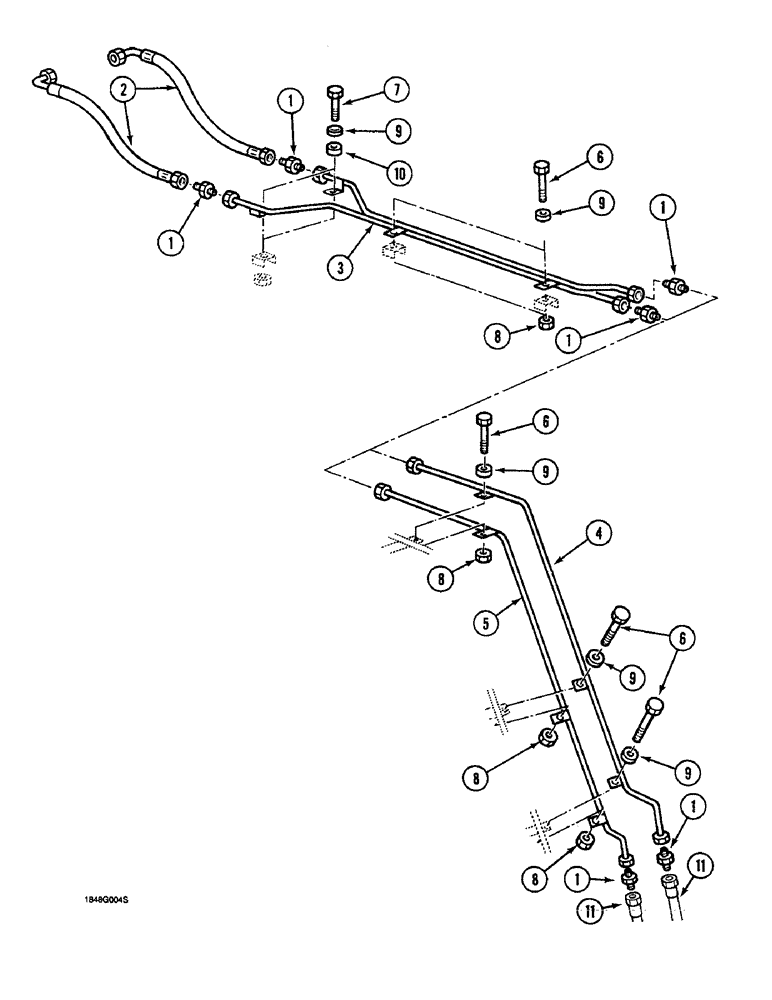

Запчасти Case 1088 (8F-10) - HYDRAULIC CIRCUIT FOR OPTIONS, TUBES AT BOOM, FOR WRIST-O-TWIST/ROTATOR (08) - HYDRAULICS

1

P3237537

UNION

ADAPTER - straight

6шт.

2

P6531959

HOSE

- 55-1/8" long, to option tubes at arm, (See Figure 8F-12)

2шт.

3

P3950170

PIPE ASSY.

TUBE - from option control valve, at upper side of boom

2шт.

4

P3950168

PIPE

TUBE - from option control valve, right-hand side of boom

1шт.

5

P3950169

PIPE

TUBE - from option control valve, left-hand side of boom

1шт.

6

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm

5шт.

7

P433814

SCREW

BOLT - hex, 10 mm x 60 mm

2шт.

8

P34598

SAFETY NUT

NUT - hex, self-locking, M10

5шт.

9

P4328796

WASHER

SPACER - bolt, 7 mm thick

7шт.

10

P1245227

WASHER

- flat, 10 mm

2шт.

11

REF

INSTRUCTION

HOSE - from option control valve, (See Figure 8F-6 and 8F-8)

2шт.
