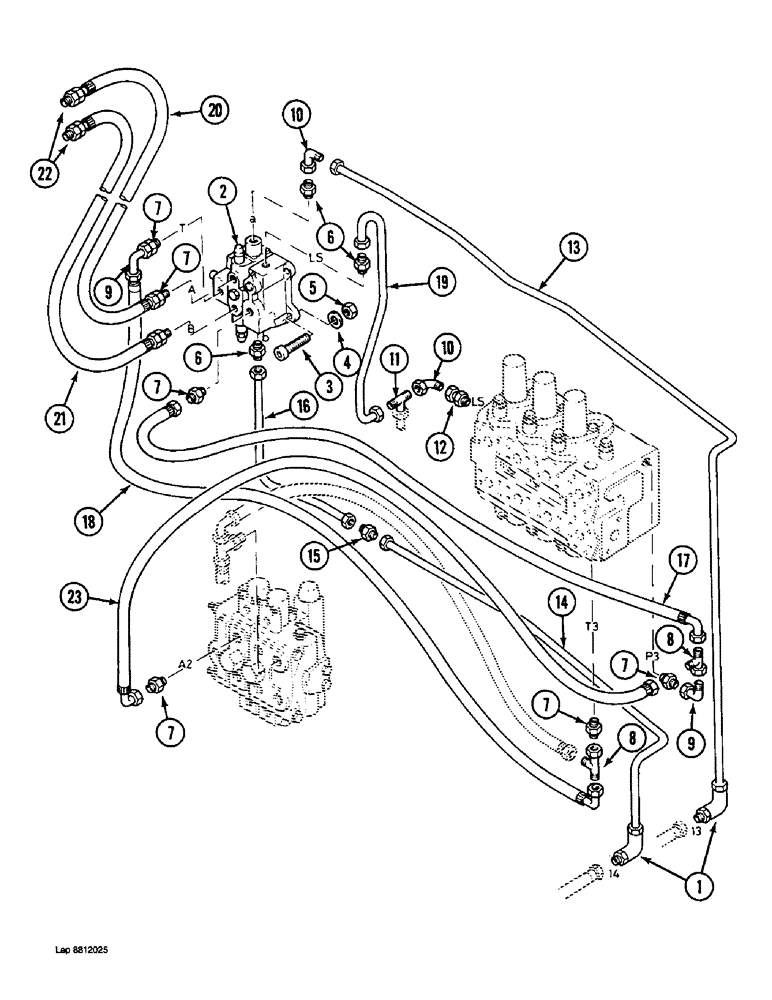

Запчасти Case 1088 (8F-08) - HYDRAULIC CONTROL CIRCUIT, P.I.N. FROM XXXXX AND AFTER (08) - HYDRAULICS

1

P1737008

ANGLE

ELBOW - 90 degree

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - option control, (See Figure 8F-16)

1шт.

3

P32935

SCREW

BOLT - hex socket, 10 mm x 40 mm

4шт.

4

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

5

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

6

P3237530

UNION

ADAPTER - straight

3шт.

P7046042

SEAL

- adapter, not shown

1шт.

7

P3237533

UNION

ADAPTER - straight

7шт.

P1145268

SEAL

- adapter, not shown

1шт.

8

P937297

TEE

- swing control valve return, (See Figure 8C-6 for continuation circuit)

2шт.

9

P1737021

ANGLE

ELBOW - 90 degree

2шт.

10

P1737018

ANGLE

ELBOW - 90 degree

2шт.

11

P2643351

BLOCK ASSY.

TEE - leak return tube

1шт.

12

P3237554

FITTING

ADAPTER - tube long

1шт.

P7046042

SEAL

- adapter, not shown

1шт.

13

P6749108

PIPE

TUBE - control circuit, upper port of control valve

1шт.

14

P6349051

PIPE

TUBE - control circuit, lower port of control valve, panel portion

1шт.

15

P3237534

UNION

ADAPTER - straight

1шт.

16

P8447693

PIPE

TUBE - control circuit, lower port of control valve

1шт.

17

P5431967

HOSE

- 24-13/16 inch long, valve to attachment control valve

1шт.

18

P6531958

HOSE

- 31-1/2 inch long, valve to lower port of attachment control valve

1шт.

19

P6649192

PIPE

TUBE - valve to attachment control valve

1шт.

20

P5931963

HOSE

- 55-1/8 inch long, Serial Range: valve-attachment

1шт.

21

P5431996

HOSE

- 63 inch long, Serial Range: valve-attachment

1шт.

22

P3237537

UNION

ADAPTER - straight

2шт.

23

P6631954

HOSE

- 39-3/8 inch long, swing control valve to attachment control valve

1шт.
