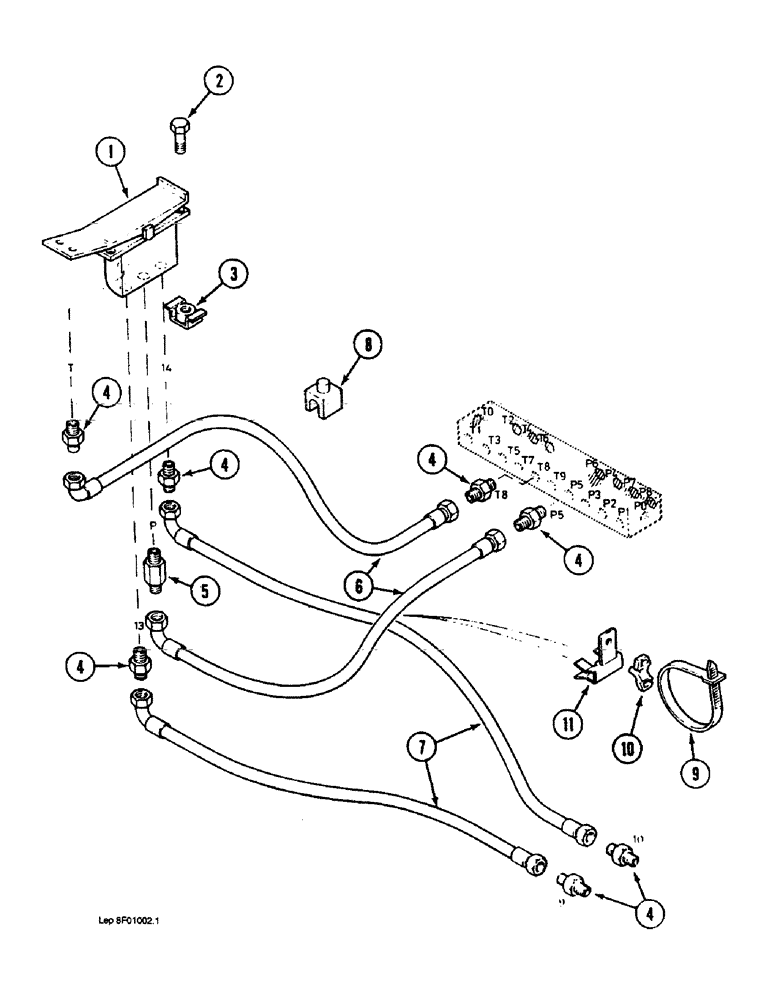

Запчасти Case 1088 (8F-05A) - HYDRAULIC CONTROL CIRCUIT, LEVELER CONTROL, P.I.N. FROM 106940 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, (See Figure 8D-14)

1шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

4шт.

3

P1334571

NUT

- hex, cage type, 8 mm

4шт.

4

P3237530

UNION

ADATPER - straight

7шт.

P7046042

SEAL

- adapter

1шт.

5

P3237581

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.

6

P5431984

HOSE

- 1000 mm long, control, at manifold block

2шт.

7

P5431954

HOSE

- 1400 mm long, control

2шт.

8

P2036942

SUPPORT

RETAINER - control circuit hoses

1шт.

9

P51946

CLAMP

TIE STRAP - circuit hose, 258 mm long

1шт.

9

P336923

CLAMP

TIE STRAP - circuit hose, 117 mm long

1шт.

10

PP2036939

CLASP

RETAINER - tie strap

1шт.

11

P2036902

CLASP

CLIP - retainer, 1/8" - 1/4" range

1шт.
