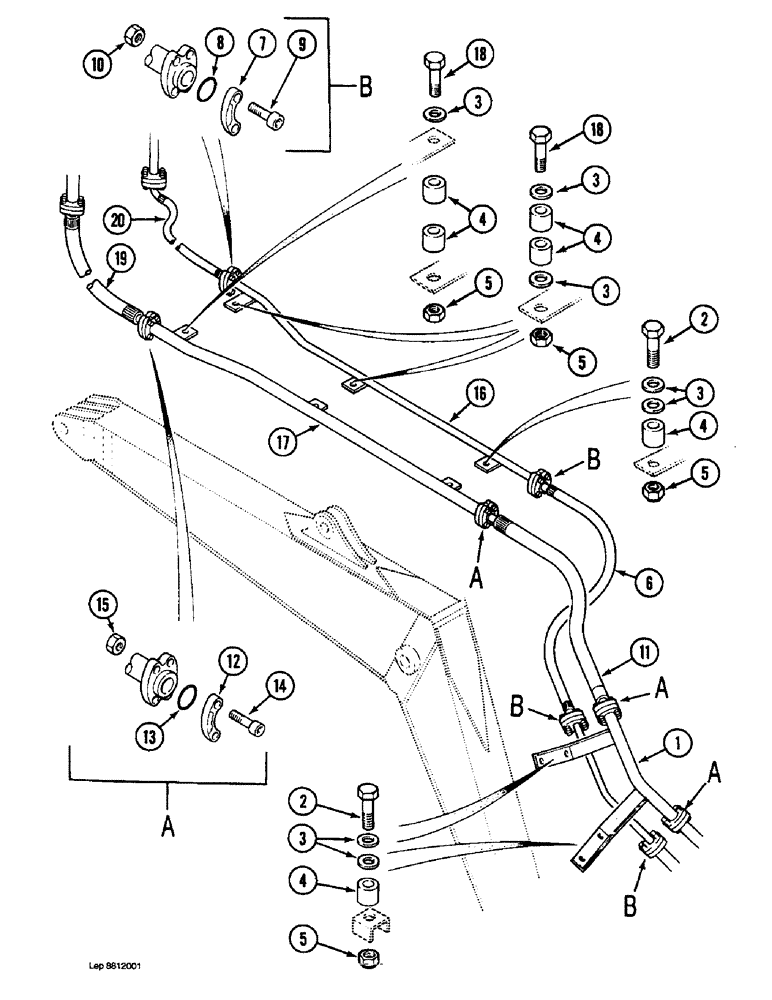

Запчасти Case 1088 (8E-10) - HYDRAULIC HAMMER CIRCUIT, TUBES AT BOOM (08) - HYDRAULICS

1

P3550130

PIPE

TUBE - hydraulic hammer

1шт.

2

P933835

SCREW

BOLT - hex, 10 mm x 70 mm, long

6шт.

3

P3528795

WASHER

SPACER - bolt, 7 mm thick

16шт.

4

P4328730

WASHER

SPACER - bolt, 20 mm thick

14шт.

5

P34598

SAFETY NUT

NUT - hex, 10 mm

5шт.

6

P5931952

HOSE

- 39-3/8" long

1шт.

7

P4024266

CLAMP

SPLIT FLANGE - hose

8шт.

8

P1130483

O-RING

- flange

4шт.

9

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

16шт.

10

86500689

NUT,M10 x 1.5, Cl 10

Flange bolt M10, Cl 10

16шт.

11

P6531973

HOSE

- 39-3/8" long

1шт.

12

P4024273

RETAINER

SPLIT FLANGE - hose

8шт.

13

P1230493

O-RING

- hose flange

4шт.

14

P32945

SCREW

BOLT - hex socket, 12 mm x 50 mm

16шт.

15

337475

NUT,M12, Cl 10

- , Flange bolt M12, Cl 10

16шт.

16

P8647689

PIPE

TUBE - hydraulic hammer, boom, right-hand

1шт.

17

P8647690

PIPE

TUBE - hydraulic hammer, boom, left-hand

1шт.

18

P133841

SCREW

BOLT - hex, 10 mm x 85 mm

4шт.

19

P6531941

HOSE

- 49-3/16" long

1шт.

20

P5431999

HOSE

- 63 inches long, (Replaces P5931978)

1шт.
