(8E-06) - HYD. HAMMER CIRCUIT, PRESSR. & RETURN LINES, P.I.N. FROM 20188 & AFT., P.I.N. FROM 106901 & AFT.

Запчасти Case 1088 (8E-06) - HYD. HAMMER CIRCUIT, PRESSR. & RETURN LINES, P.I.N. FROM 20188 & AFT., P.I.N. FROM 106901 & AFT. (08) - HYDRAULICS

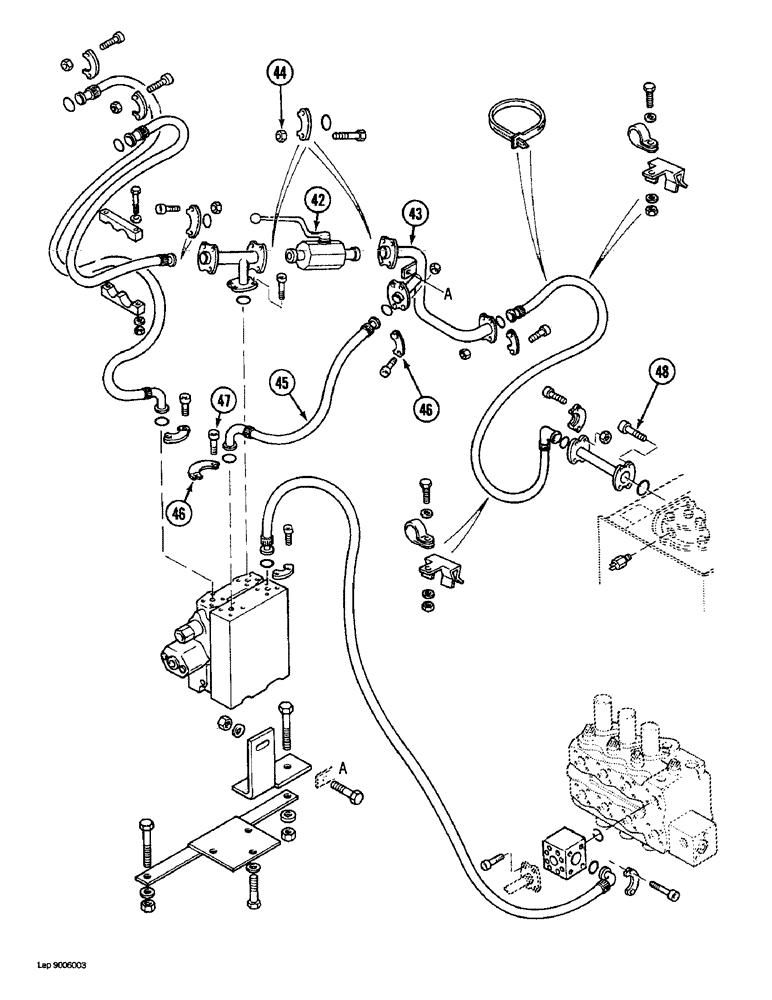

Схема запчастей Case 1088 - (8E-06) - HYD. HAMMER CIRCUIT, PRESSR. & RETURN LINES, P.I.N. FROM 20188 & AFT., P.I.N. FROM 106901 & AFT. (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

42

P837853

COCK

SHUTOFF ASSEMBLY - hydraulic circuit control

1шт.

43

P4050179

MANIFOLD

- hammer valve

1шт.

44

337475

NUT,M12, Cl 10

- M12, Cl 10

8шт.

45

P7331995

HOSE

- 19-3/4" long, inlet, Serial Range: section-manifold

1шт.

46

P4024272

BRACKET

SPLIT FLANGE - hose

4шт.

47

P32933

SCREW

BOLT - hex socket, 10 mm x 30 mm

4шт.

48

P32941

SCREW

BOLT - hex socket, 12 mm x 25 mm

4шт.
