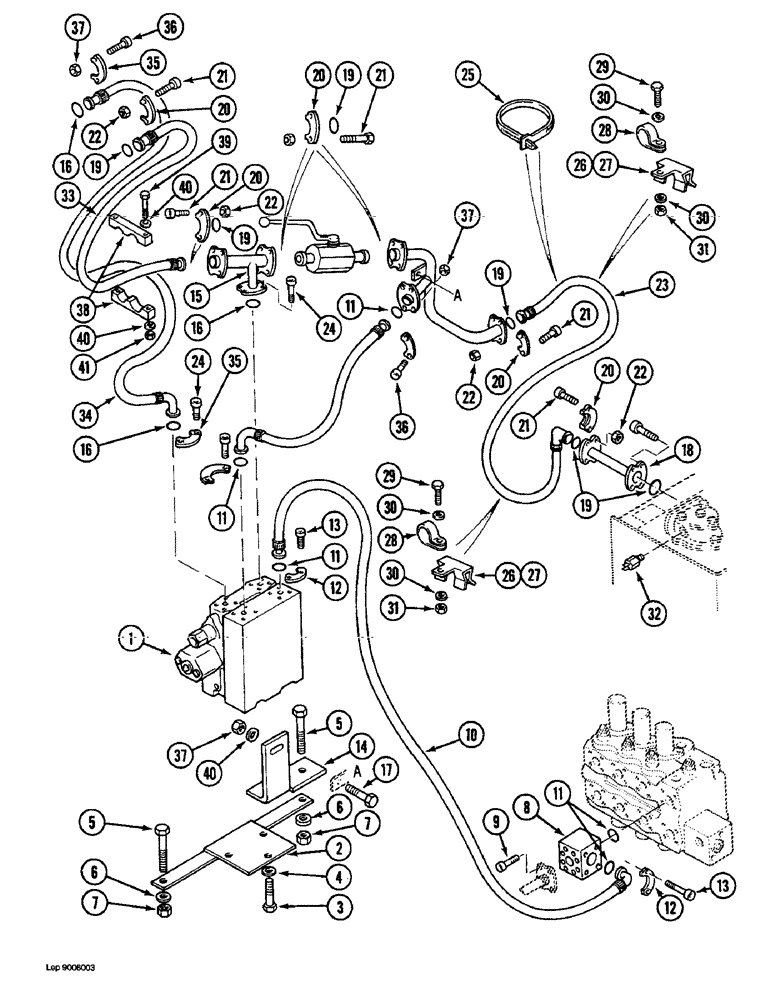

Запчасти Case 1088 (8E-04) - HYD. HAMMER CIRCUIT, PRESSR. & RETURN LINES, P.I.N. FROM 20188 & AFT., P.I.N. FROM 106901 & AFT. (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic hammer control, (See Figure 8E-14)

1шт.

2

P4427127

SUPPORT

PLATE - valve mounting

1шт.

3

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

3шт.

4

P3528793

WASHER

SPACER - bolt, 8 mm thick

3шт.

5

P133804

BOLT,Hex, M20 x 85

- hex, 20 mm x 85 mm

2шт.

6

P3528796

WASHER

SPACER - bolt, 14 mm thick

2шт.

7

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

2шт.

8

P1237231

TEE

BLOCK - manifold

1шт.

9

P1232910

SCREW

BOLT - hex socket, 14 mm x 120 mm

4шт.

10

P6531930

HOSE

- 49-3/16" long, block to hydraulic hammer valve

1шт.

11

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- manifold block

5шт.

12

P4024267

SHIN

SPLIT FLANGE - hose

4шт.

13

P32944

SCREW

BOLT - hex socket, 12 mm x 40 mm

8шт.

14

P5625627

SUPPORT

PLATE - manifold mounting

1шт.

15

P4050178

MANIFOLD

- hammer valve

1шт.

16

P1130483

O-RING

- hose flange

3шт.

17

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

1шт.

18

P4137677

PIPE

TUBE - return, at reservoir

1шт.

19

P1230493

O-RING

- hose flange

7шт.

20

P4024273

RETAINER

SPLIT FLANGE - hose

12шт.

21

P32945

SCREW

BOLT - hex socket, 12 mm x 50 mm

24шт.

22

337475

NUT,M12, Cl 10

- M12, Cl 10

16шт.

23

P7631901

HOSE

- 110-1/4 long, return, manifold to hydraulic reservoir

1шт.

24

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

25

P136922

CLAMP

TIE STRAP - hose, 13-3/4 inch long

5шт.

26

P2036902

CLASP

CLIP - retainer, 1/8" - 1/4" range

1шт.

27

P1436963

CLASP

CLIP - retainer, 1/2" - 3/4" range

1шт.

28

P1736988

CLAMP

- hose

2шт.

29

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

30

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

31

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm

2шт.

32

P1241892

ELECTRO/HYD CONTACT

SENDER - filter restriction indicator

1шт.

33

P7631922

HOSE

- 78-3/4" long, return, hydraulic hammer valve to tube at boom

1шт.

34

P5931901

HOSE

- 78-3/4" long, pressure, hydraulic hammer valve to tube at boom

1шт.

35

P4024266

CLAMP

SPLIT FLANGE - hose

4шт.

36

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

8шт.

37

100016

NUT,M10 x 1.5, Cl 8

hex, flange bolt, 10 mm

9шт.

38

P5120335

SHIN

CLAMP - hose, two hose

2шт.

39

P933808

SCREW

BOLT - hex, 10 mm x 90 mm

2шт.

40

P3528795

WASHER

SPACER - bolt, 7 mm thick

5шт.

41

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.
