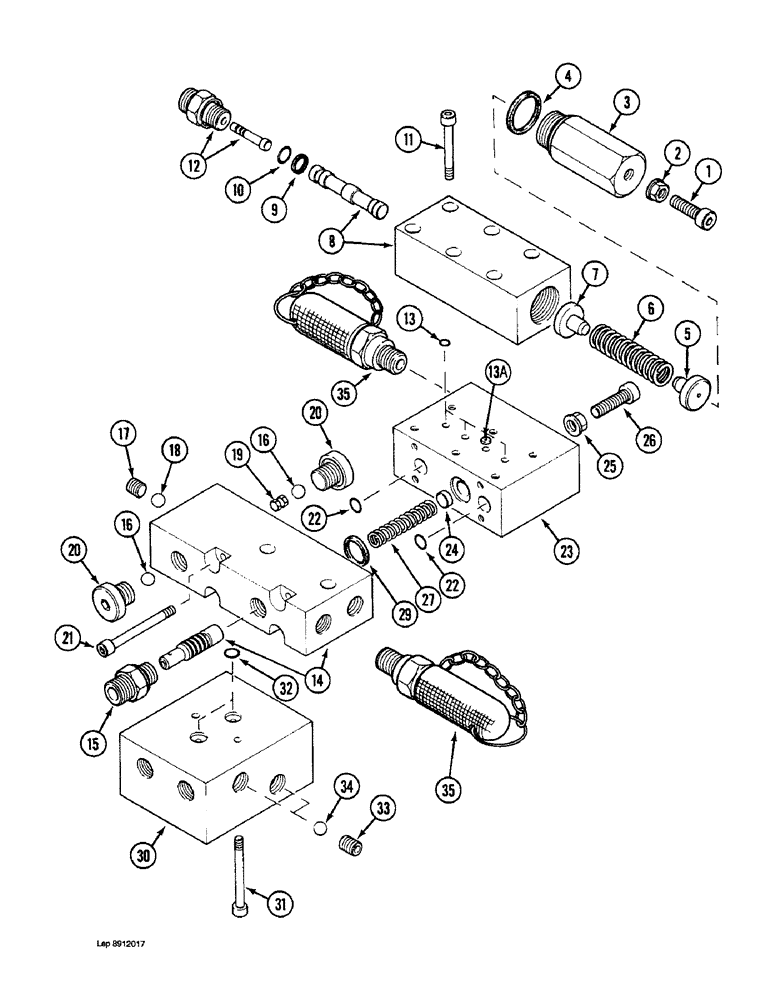

Запчасти Case 1088 (8D-18) - COUNTER ROTATION VALVE, P.I.N. FROM 19944, 19949, 19951 TO 20241, P.I.N. FROM 106901 TO 106939 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
P4743397
VALVE
ASSEMBLY - counter rotation, Includes: Ref. 1 - 35
1шт.
P4743384
SELECTOR
VALVE ASSEMBLY - selector, Includes: Ref. 1 - 13A
1шт.
1
Q732978
SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9
1шт.
2
P2434541
NUT
- adjusting screw
1шт.
3
P1030033
CAP
BODY - selector valve
1шт.
4
P1145268
SEAL
O-RING - body
1шт.
5
P6027871
TAPPET
SEAT - spring
1шт.
6
P2838108
SPRING
- selector
1шт.
7
P6427831
TAPPET
SEAT - spring
1шт.
8
P4743386
BODY
BLOCK ASSEMBLY - body and spool, Includes: Ref. 9 and 10
1шт.
9
P1245260
BACK-UP RING
BACKUP RING - seal
1шт.
10
P1230429
O-RING
- spool
1шт.
11
P232916
SCREW
BOLT - hex socket, 5 mm x 30 mm
6шт.
12
P4743368
SET OF PARTS
PLUG ASSEMBLY - selector
1шт.
P7046042
SEAL
- plug
1шт.
13
P1230429
O-RING
-, Serial Range: block-body
4шт.
13a
P3545031
HOLE PLUG BUTTON
RESTRICTOR - pressure line
1шт.
14
P4743387
PRESSURE LIMITER
VALVE ASSEMBLY - counter rotation valve, Includes: Ref. 15 - 29
1шт.
P4743388
SET OF PARTS
KIT - repairing set
1шт.
15
P3237530
UNION
ADAPTER - straight
1шт.
P7046042
SEAL
- plug
1шт.
16
P31043
BALL
- valve
2шт.
17
P32813
SCREW
- body
1шт.
18
P31002
BALL
- valve
1шт.
19
P6427832
TAPPET
PUSHER - ball
1шт.
20
P2537447
PLUG
- at body
2шт.
P7046042
SEAL
- plug
1шт.
21
P332907
SCREW
BOLT - hex socket, 5 mm x 50 mm
4шт.
22
P1230429
O-RING
-, Serial Range: body-body
2шт.
23
P4743389
BODY
- valve
1шт.
24
P6427833
TAPPET
PUSHER - spring
1шт.
25
P2434541
NUT
- adjusting screw
1шт.
26
P0732978Q
SCREW
1шт.
27
P1038265
SPRING
- valve
1шт.
29
P1130462
O-RING
- body
1шт.
30
P4743385
ELEMENT
BLOCK ASSEMBLY - junction block, Includes: Ref. 31 - 34
1шт.
31
P432913
SCREW
BOLT - hex socket, 6 mm x 40 mm
2шт.
32
P1230429
O-RING
- junction, Serial Range: block-body
2шт.
33
P4743366
SEAT
SCREW - seat
2шт.
34
P31018
BALL
- junction block
2шт.
35
P3237549
UNION
DISCONNECT ASSEMBLY - pressure check
2шт.
P7046042
SEAL
- plug
1шт.
Выбрано товаров: 42
