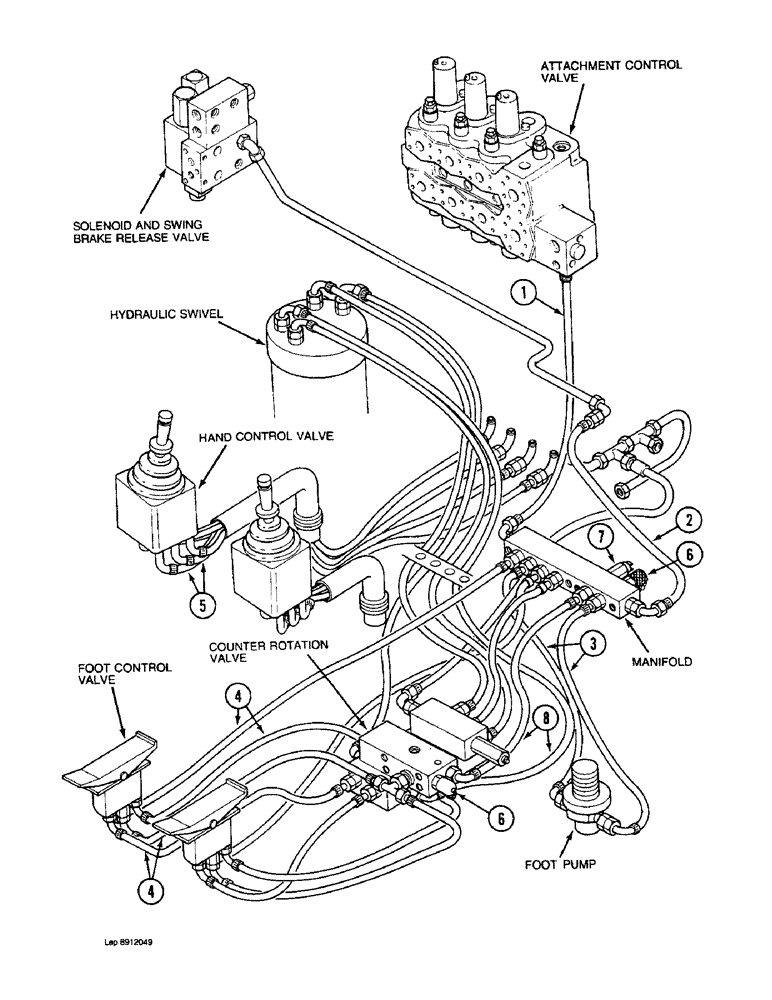

Запчасти Case 1088 (1-18) - PICTORIAL INDEX, CAB HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Hose, Return, Manifold to Attachment Control Block, Pages 8D-2, 8D-3A

1шт.

2

Hose, Pressure, Solenoid Control Valve to Manifold, Pages 8D-2, 8D-3A

1шт.

3

Hoses, Foot Control Pump to Manifold, Pages 8D-6, 8D-7A

1шт.

4

Hoses, Control Circuit, Foot Control Valve, Pages 8D-4, 8D-5A

1шт.

5

Hoses, Control Circuit and Control Valve, Pages 8D-6, 8D-7A

1шт.

6

Disconnect, Pressure Check, Pages 8D-2, 8D-3A

1шт.

7

Switch, Low Pressure Lamp, Pages 8D-2, 8D-3A

1шт.

8

Hose, Counter Rotation Valve, Page 8D-4

1шт.
