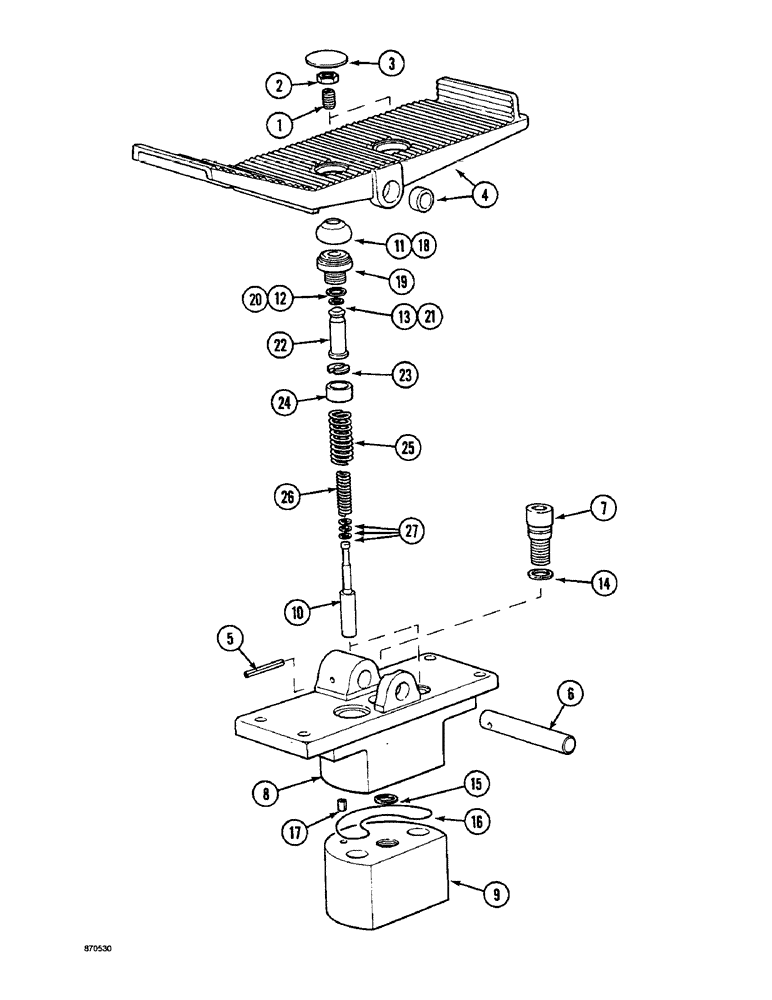

Запчасти Case 1088 (8D-14) - FOOT CONTROL VALVE (08) - HYDRAULICS

P4343360

BLOCK ASSY.

VALVE ASSEMBLY - foot control, Includes: Ref. 1 - 27

1шт.

P5242742

PEDAL

ASSEMBLY - foot, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SCREW - adjustment

2шт.

2

NSS

NOT SOLD SEPARAT

NUT - lock, adjustment screw

2шт.

3

NSS

NOT SOLD SEPARAT

PLUG - pedal, atadjusting screw

2шт.

4

NSS

NOT SOLD SEPARAT

PEDAL AND BUSHINGS - foot control

1шт.

5

NSS

NOT SOLD SEPARAT

ROLL PIN - pedal shaft

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - pedal

1шт.

7

NSS

NOT SOLD SEPARAT

BOLT - special, upper valve body to port block

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - valve, upper

1шт.

9

NSS

NOT SOLD SEPARAT

BLOCK - port, valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - regulating

2шт.

P6149640

SEAL PACKAGE

KIT - seal, guide, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BOOT - rubber, cartridge guide

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING - guide, large

2шт.

13

NSS

NOT SOLD SEPARAT

O-RING - guide, small

2шт.

P5449620

KIT

- seal, valve body, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - valve body screw

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - valve body, small

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - valve body, large

1шт.

17

NSS

NOT SOLD SEPARAT

ROLL PIN - port block

2шт.

P6149637

KIT

- cartridge and guide, Includes: Ref. 18 - 22

2шт.

18

NSS

NOT SOLD SEPARAT

BOOT - rubber, cartridge guide

1шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - cartridge

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - guide, large

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - guide, small

1шт.

22

NSS

NOT SOLD SEPARAT

CARTRIDGE - control

1шт.

P5449697

KIT

- cartridge spring, Includes: Ref. 23 - 27

2шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - spring stop

1шт.

24

NSS

NOT SOLD SEPARAT

STOP - spring

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - cartridge, outer

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - cartridge, inner

1шт.

27

NSS

NOT SOLD SEPARAT

SHIM SET - spring

1шт.
