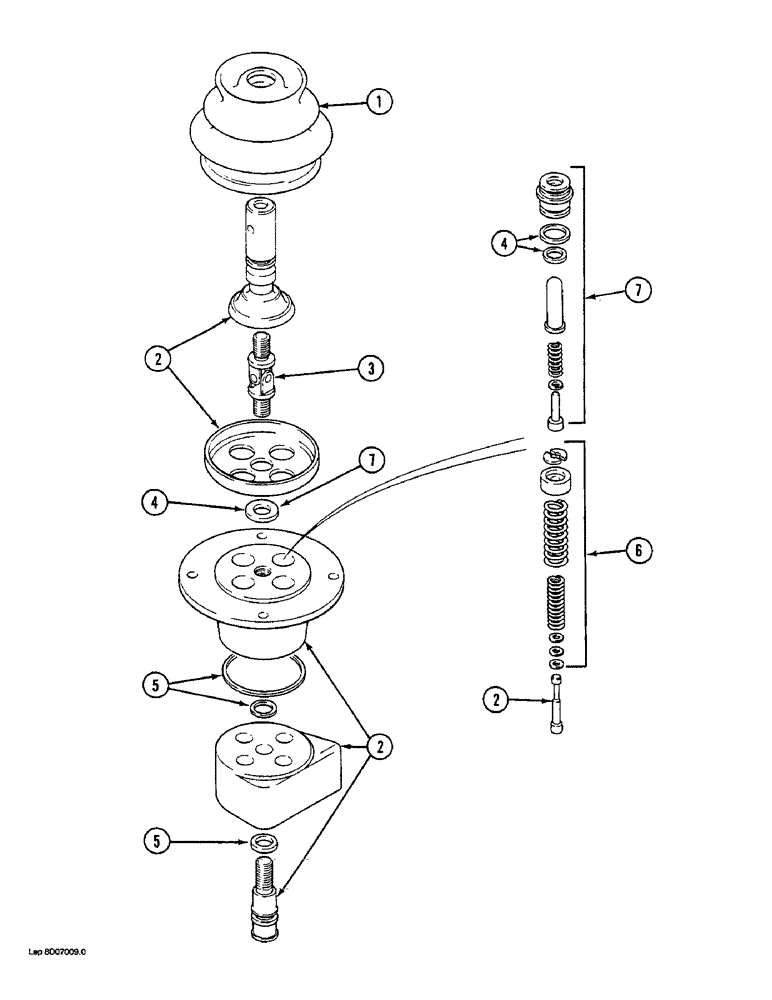

Запчасти Case 1088 (8D-12) - HAND CNTRL. VALVE, P.I.N. FROM 20053 AND AFTER, P.I.N. FROM 106901 AND AFTER (08) - HYDRAULICS

P4743324

BLOCK ASSY.

VALVE ASSEMBLY - hand control, (Order P5143332), (See Figure 8D-13A), Includes: Ref. 1 - 7

1шт.

1

P5446210

BELLOWS

BOOT - protective, rubber

1шт.

2

NSS

NOT SOLD SEPARAT

PARTS - not serviced separately, (Order P4743324 unit)

1шт.

3

P5242741

COUPLING

UNIVERSAL JOINT - control lever

1шт.

4

P6149633

SEAL PACKAGE

KIT - seal guide

1шт.

5

P3749617

KIT

- seal, valve body

1шт.

6

P5949627

KIT

- cartridge and guide

4шт.

7

P6149632

KIT

- cartridge spring

4шт.
