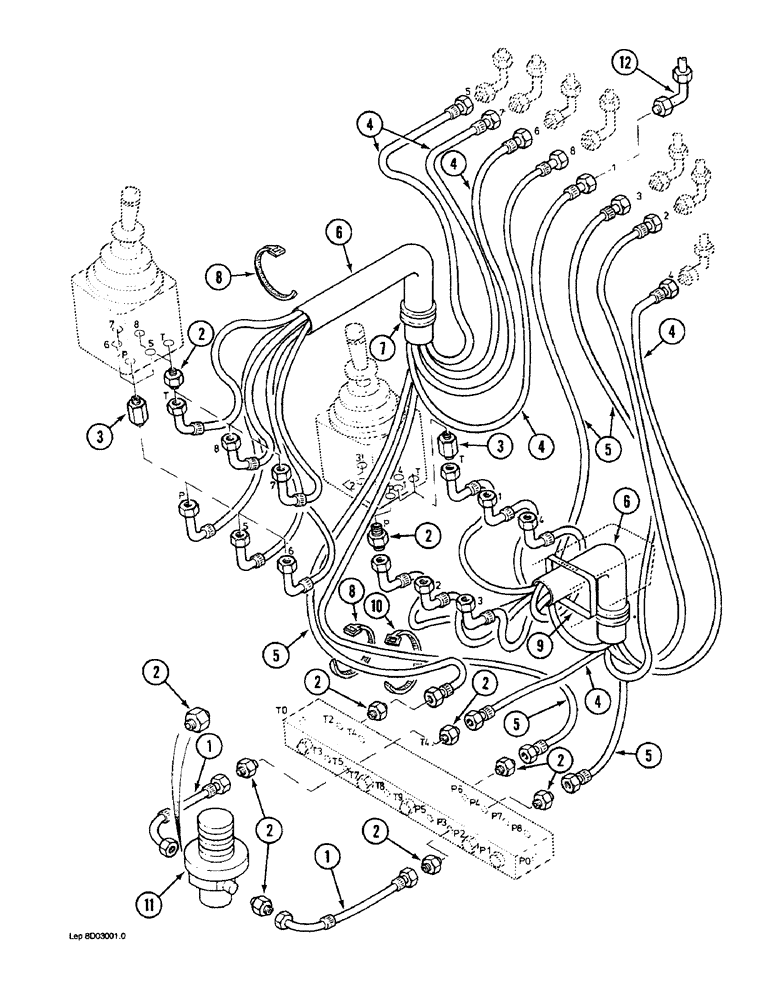

Запчасти Case 1088 (8D-06) - HYDRAULIC CONTROL, CIRCUIT, MANIFOLD TO HAND CONTROL VALVES (08) - HYDRAULICS

1

P5431952

HOSE

- 14-1/4" long, Serial Range: manifold-pump

2шт.

2

P3237530

UNION

ADAPTER - straight

14шт.

P7046042

SEAL

- adapter

1шт.

3

P3237581

UNION

ADAPTER - straight

6шт.

P7046042

SEAL

- adapter

1шт.

4

P5431954

HOSE

- 55-1/8" long, control circuit

7шт.

5

P5431955

HOSE

- 63" long, control circuit

5шт.

6

P4931937

LOOM

SLEEVE - hose protector

2шт.

7

P41478

GROMMET

- protector sleeve

2шт.

8

P51946

CLAMP

TIE STRAP - hose, 10-1/8" long

1шт.

9

P136922

CLAMP

TIE STRAP - hose, 13-3/4" long

1шт.

10

P336923

CLAMP

TIE STRAP - hose, 4-5/8" long

1шт.

11

REF

INSTRUCTION

PUMP - foot, control circuit, (See Figures 9D-4, 9D-6)

1шт.

12

REF

INSTRUCTION

ELBOW - 90 degree, (See Figures 8C-2 and 8C-6 for control circuit to attachment and swing control valves)

8шт.
