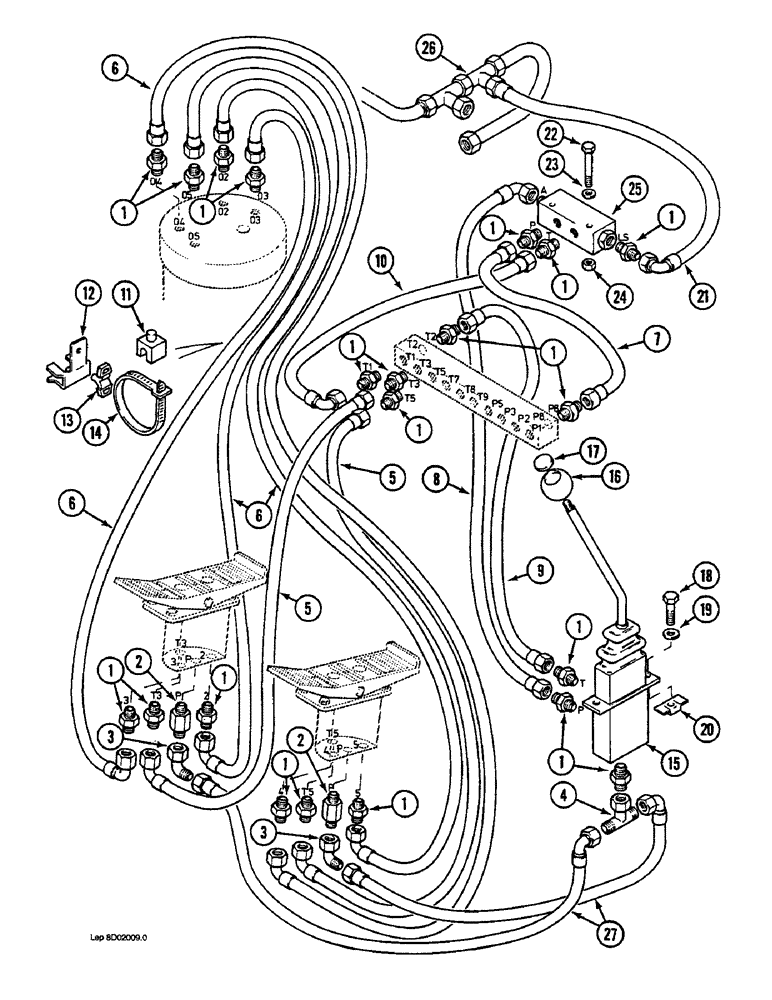

Запчасти Case 1088 (8D-05A) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO FOOT CONTROL VALVES AND SWIVEL (08) - HYDRAULICS

1

P3237530

UNION

ADAPTER - straight

24шт.

P7046042

SEAL

- adapter

1шт.

2

P3237581

UNION

ADAPTER - straight, long

2шт.

P7046042

SEAL

- adapter

1шт.

3

P1737018

ANGLE

ELBOW - 90 degree

2шт.

4

P937293

TEE

- street

1шт.

5

P5431978

HOSE

- 33-1/2" long, control circuit

2шт.

6

P5431957

HOSE

- 2000 mm long, control circuit

4шт.

7

P5431949

HOSE

- 19-3/4" long, control circuit

1шт.

8

P5931904

HOSE

- 19-3/4" long, control circuit

1шт.

9

P5931943

HOSE

- 630 mm long, control circuit

1шт.

10

P5431965

HOSE

- 600 mm long, control circuit

2шт.

11

P2036942

SUPPORT

RETAINER - control circuit hoses

1шт.

12

P2036902

CLASP

CLIP - retainer, 1/8" - 1/4" range

1шт.

13

P2036939

CLASP

RETAINER - tie strap

1шт.

14

P51943

TIE STRAP - circuit hoses, 10-1/8" long

1шт.

14

P336923

CLAMP

TIE STRAP - circuit hoses, 117 mm long

1шт.

15

REF

INSTRUCTION

BLOCK ASSEMBLY - travel control block, (See Figure 8D-20)

1шт.

16

P152055

BALL KNOB

KNOB - block

1шт.

17

P2551569

DECAL - knob

1шт.

18

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

2шт.

19

P3528794

WASHER

SPACER - bolt, 6 mm thick

2шт.

20

P1334571

NUT

- hex, cage type, 8 mm

2шт.

21

P7931909

HOSE

- 1250 mm long, control circuit

1шт.

22

P33822

SCREW

BOLT - hex, 8 mm x 50 mm

2шт.

23

P35002

WASHER

SPACER - bolt

2шт.

24

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

2шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - speed control limiter valve, (See Figure 8D-22)

1шт.

26

REF

INSTRUCTION

CIRCUIT - valve support, (See Figure 8C-2)

1шт.
