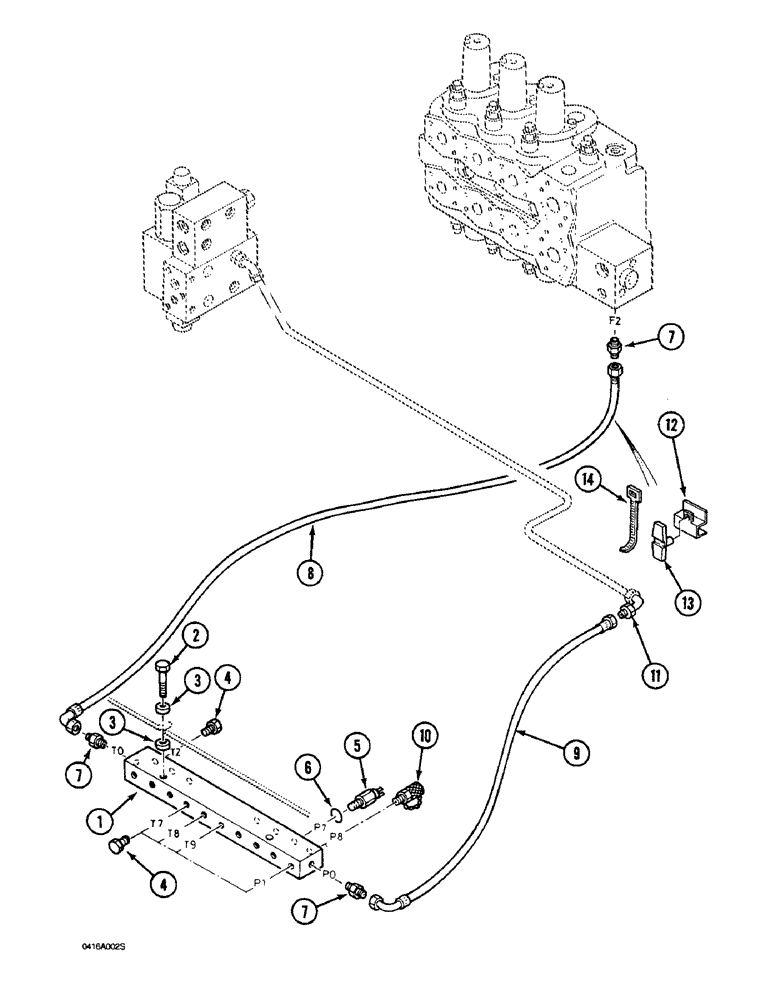

Запчасти Case 1088 (8D-02) - HYD. CNTRL. CIRCUIT, AT MANIFOLD BLOCK, P.I.N. FROM 19801 TO 20241, P.I.N. FROM 106901 TO 106939 (08) - HYDRAULICS

1

P3837785

BLOCK ASSY.

BLOCK - manifold, control circuit hoses

1шт.

2

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

3

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

4

P2537447

PLUG

- at manifold

5шт.

P7046042

SEAL

- plug

1шт.

5

P1241850

ELECTRO/HYD CONTACT

SWITCH - low circuit pressure lamp

1шт.

6

P45298

WASHER, SEALING

SEAL - switch

1шт.

7

P3237532

UNION

ADAPTER - straight

3шт.

P2230418

SEAL

O-RING - adapter

1шт.

8

P5431959

HOSE

- 49-1/4" long, to attachment valve block

1шт.

9

P5431958

HOSE

- 35-7/16" long, control circuit at block

1шт.

10

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- disconnect

1шт.

11

REF

INSTRUCTION

ELBOW - 90 degree, (See Figure 8C-4 for control circuit from solenoid valve)

1шт.

12

P2036902

CLASP

CLIP - retainer

1шт.

13

P2036939

CLASP

RETAINER - tie strap

1шт.

14

P51946

CLAMP

TIE STRAP - hose, 10-1/8 inch long

1шт.
