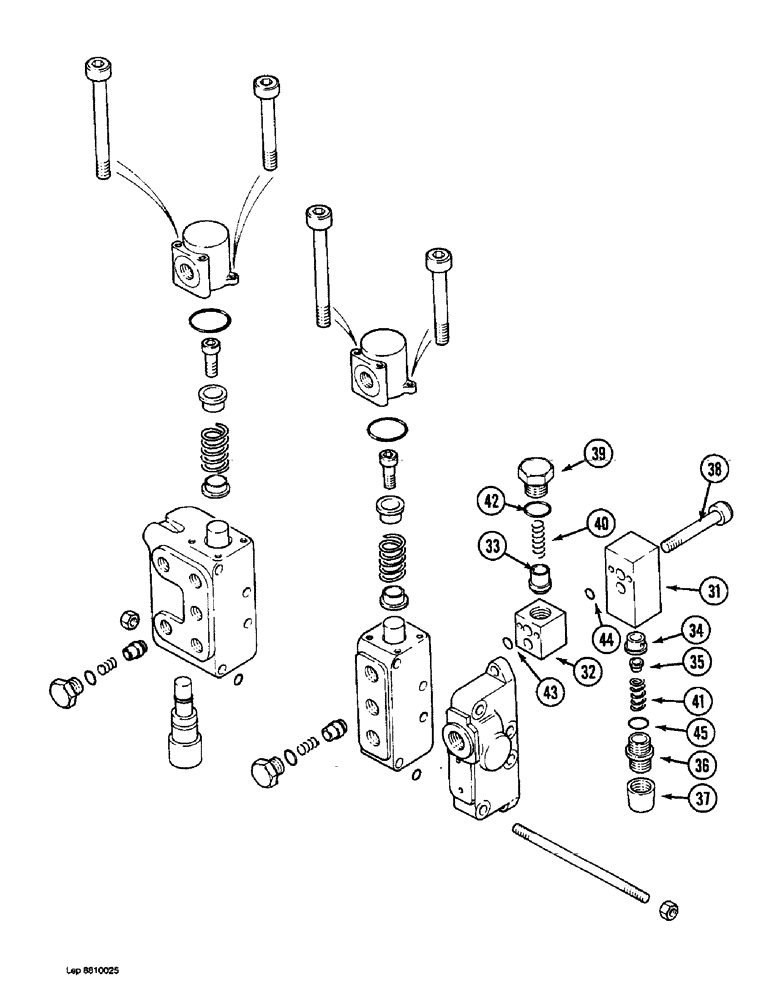

Запчасти Case 1088 (8C-28) - SWING CONTROL VALVE (08) - HYDRAULICS

P2643606

BOX

RELIEF VALVE ASSEMBLY - swing control, Includes: Ref. 31 - 45

2шт.

31

NSS

NOT SOLD SEPARAT

BLOCK - relief valve

1шт.

32

NSS

NOT SOLD SEPARAT

BLOCK - relief valve

1шт.

33

NSS

NOT SOLD SEPARAT

PISTON - relief

1шт.

34

NSS

NOT SOLD SEPARAT

GUIDE - relief valve

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

36

NSS

NOT SOLD SEPARAT

BODY - plunger

1шт.

37

NSS

NOT SOLD SEPARAT

COVER - body

1шт.

38

P1532910

SCREW

BOLT - hex socket, 6 mm x 75 mm

2шт.

39

P2537443

PLUG

- relief valve

1шт.

40

P38277

SPRING

- relief valve

1шт.

41

P38278

SPRING

- plunger

1шт.

P3749656

SEAL PACKAGE

KIT - repair seal, Includes: Ref. 42 - 45

2шт.

42

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

43

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: block-body

2шт.

44

NSS

NOT SOLD SEPARAT

O-RING - block

2шт.

45

NSS

NOT SOLD SEPARAT

O-RING - body

1шт.
