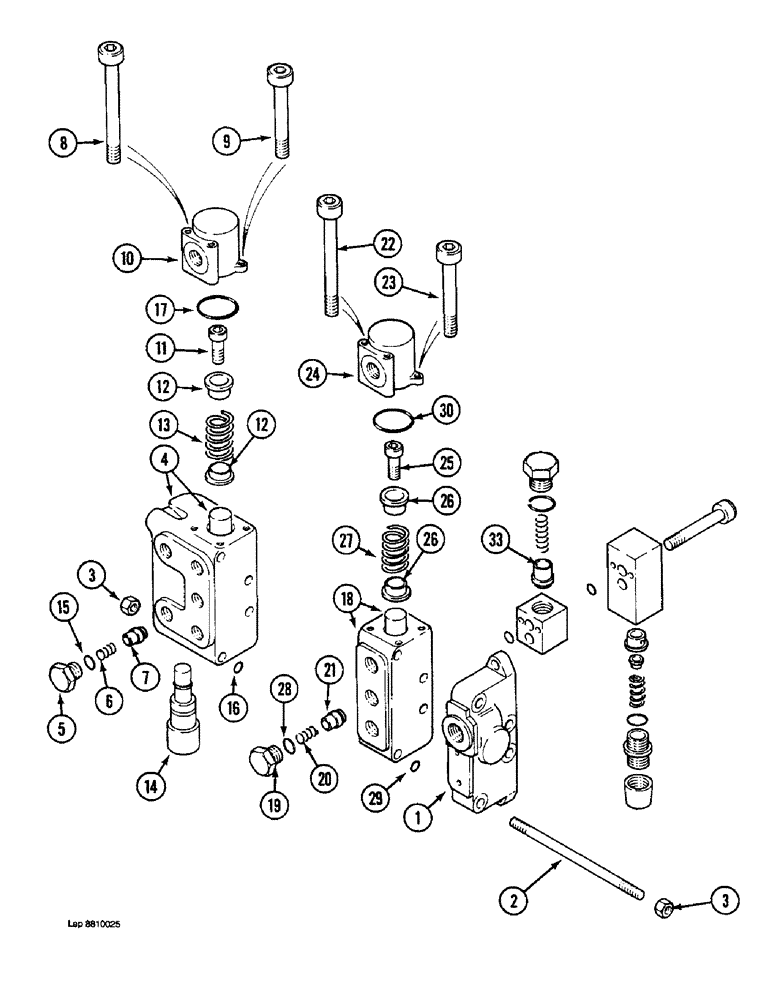

Запчасти Case 1088 (8C-26) - SWING CONTROL VALVE (08) - HYDRAULICS

1

P3143624

ELEMENT

COVER - end valve

1шт.

2

P2527778

TRUSS ROD

STUD - end cover to valve body

4шт.

3

P1634589

NUT

- hex, self-locking, 10 mm

8шт.

P3343637

DISTRIBUTOR

VALVE BODY ASSEMBLY - swing control, Includes: Ref. 4 - 17

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE BODY - swing control

1шт.

5

P2537433

PLUG

- load check valve

1шт.

6

P38283

SPRING

- poppet

1шт.

7

P2643624

VALVE POPPET

POPPET - load check

1шт.

8

P432913

SCREW

BOLT - hex socket, 6 mm x 40 mm

4шт.

9

P32911

SCREW

BOLT - hex socket, 6 mm x 20 mm

4шт.

10

P2340464

CAP

- valve spool

2шт.

11

P2033090

SCREW

- spool

2шт.

12

P8230112

CUPEL

SEAT - spring

4шт.

13

P38259

SPRING

- spool

2шт.

14

P3343638

CARTRIDGE

VALVE - pressure limiter

1шт.

P5449657

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - load check plug

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - valve body to end cover

4шт.

17

NSS

NOT SOLD SEPARAT

O-RING - spool cap

2шт.

P3343639

DISTRIBUTOR

VALVE ASSEMBLY, Includes: Ref. 18 - 30

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

19

P2537433

PLUG

- load check valve

1шт.

20

P38283

SPRING

- poppet

1шт.

21

P2643624

VALVE POPPET

POPPET - load check

1шт.

22

P432913

SCREW

BOLT - hex socket, 6 mm x 40 mm

4шт.

23

P32911

SCREW

BOLT - hex socket, 6 mm x 20 mm

4шт.

24

P2340464

CAP

- valve spool

2шт.

25

P2033090

SCREW

- spool

2шт.

26

P8230112

CUPEL

SEAT - spring

4шт.

27

P38259

SPRING

- spool

2шт.

P5449657

SEAL PACKAGE

KIT - repair, seal

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - load check plug

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING - valve body to end cover

4шт.

30

NSS

NOT SOLD SEPARAT

O-RING - spool cap

2шт.
