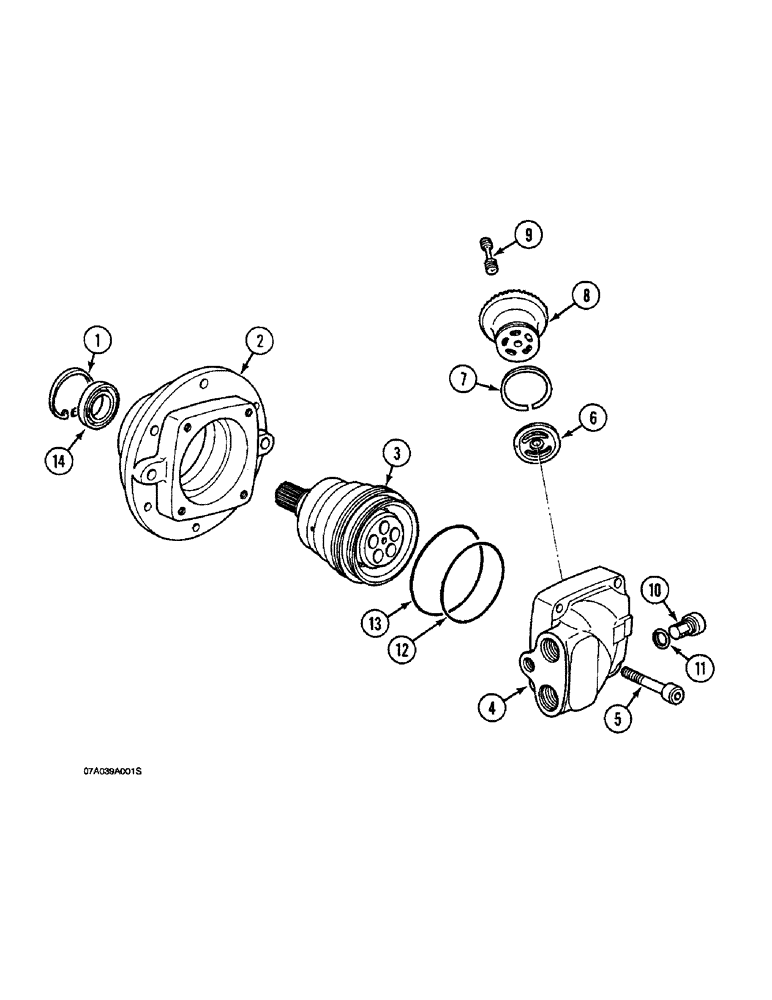

Запчасти Case 1088 (8C-24) - SWING DRIVE MOTOR (08) - HYDRAULICS

P2343766

MOTOR, HYDRAULIC

HYDRAULIC MOTOR ASSEMBLY - swing drive, Includes: Ref. 1 - 14

1шт.

1

P936325

RING, SNAP

SNAP RING - washer retaining

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - motor, front

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - motor

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - motor, rear

1шт.

5

P532942

SCREW

BOLT - hex socket, 12 mm x 60 mm

4шт.

6

P6546297

ELEC SUPPORT PLATE

PLATE - valve

1шт.

7

P936311

RING, SNAP

RING - locking, plate

1шт.

8

P1030006

LOCK, CYLINDER

BLOCK - cylinder

1шт.

9

P1729866

PISTON

- cylinder block

5шт.

10

P3037428

PLUG

- rear housing

1шт.

11

P1245274

WASHER

SEAL - plug, (Replaces P1245237)

1шт.

P3749696

SEAL PACKAGE

KIT - repair, seal

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, small

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, large

1шт.

14

P9646056

OIL SEAL

SEAL - shaft, front housing, (Replaces P7146036)

1шт.
