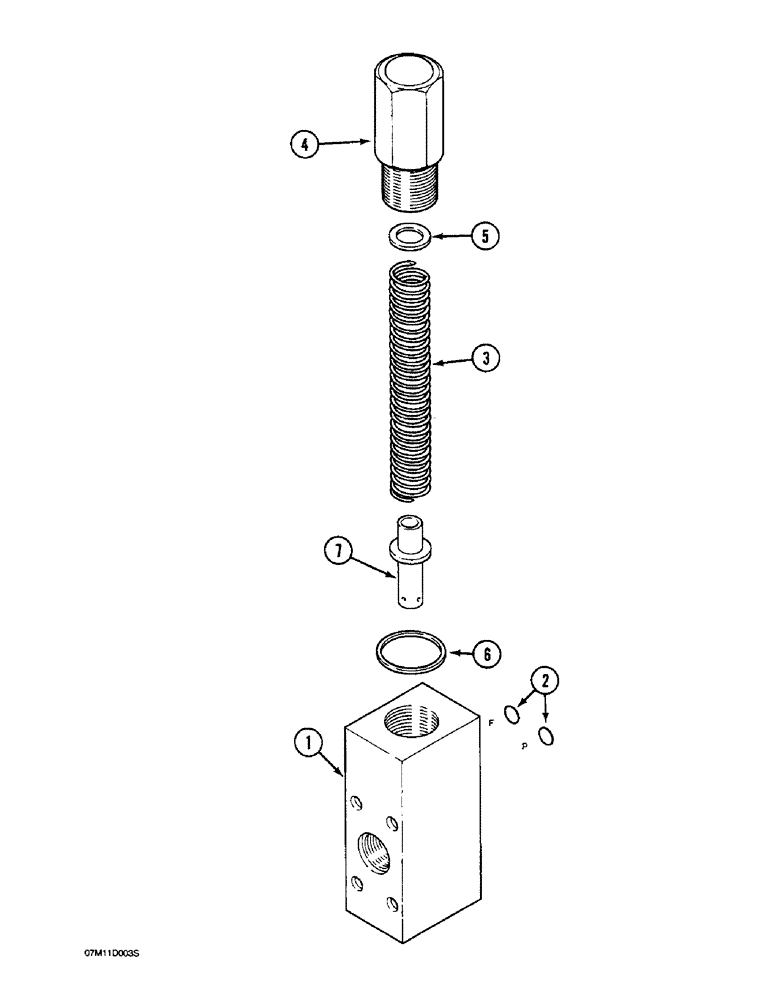

Запчасти Case 1088 (8C-22) - PRESSURE REGULATING VALVE (08) - HYDRAULICS

P3743392

VALVE PRESSURE RELIE

VALVE ASSEMBLY - pressure regulating, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

P330406

O-RING

- body

2шт.

3

P1538164

SPRING

- regulator

1шт.

4

P1729836

COVER

CAP - regulator spring

1шт.

5

P3145311

BLOCK

SHIM - spring, 0.008 inch (0.20 mm) thick

1шт.

5

P3145312

BLOCK

SHIM - spring, 0.020 inch (0.50 mm) thick

1шт.

5

P3145313

BLOCK

SHIM - spring, 0.040 inch (1 mm) thick

1шт.

6

P5746063

SEAL

- cap

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.
