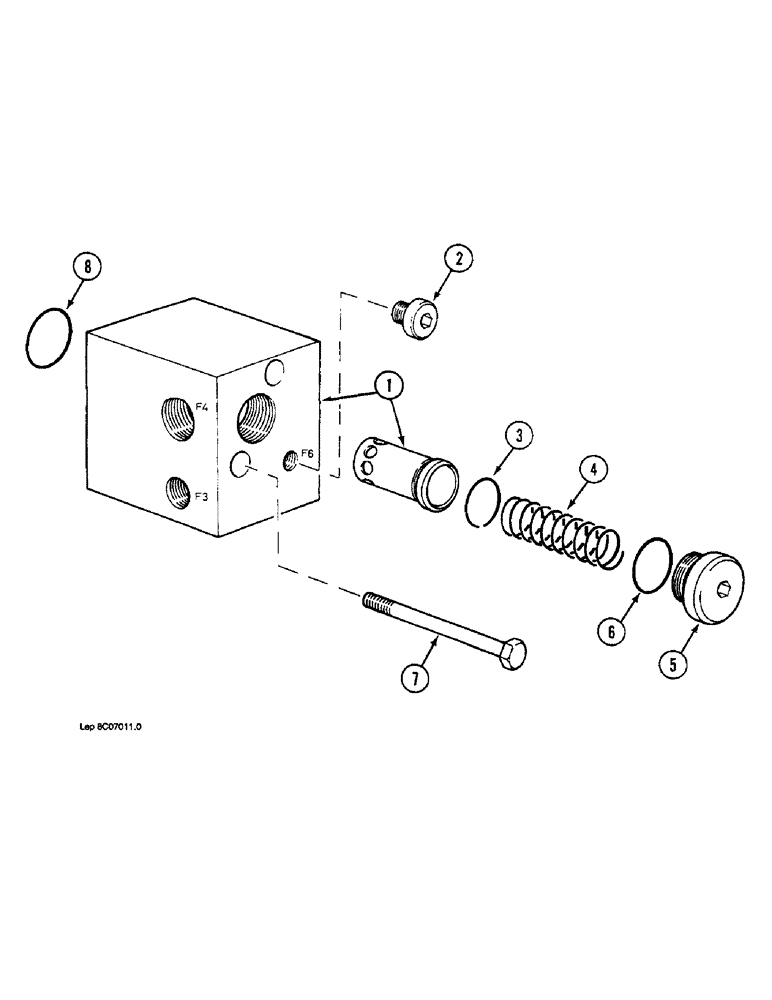

Запчасти Case 1088 (8C-18) - ATTACHMENT CONTROL VALVE BLOCK, P.I.N. FROM 20196 AND AFTER, P.I.N. FROM 106904 AND AFTER (08) - HYDRAULICS

P4943333

SHIN

BLOCK ASSEMBLY - attachment control valve, (Replaces P4343318), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK AND POPPET - attachment control valve

1шт.

2

P2537447

PLUG

- body

1шт.

P7046042

SEAL

- plug

1шт.

3

P936368

SPECIAL RING

SNAP RING - poppet

1шт.

4

P1038280

SPRING

- poppet

1шт.

5

P3337496

PLUG

- valve block

1шт.

6

P630442

O-RING

- plug

1шт.

7

P933879

SCREW

BOLT - hex, 10 mm x 130 mm, grade 10.9

2шт.

8

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- block

1шт.
