(8C-10) - TURNTABLE LEVELER HYDRAULIC SWIVEL, P.I.N. FROM 106901 AND AFTER

Запчасти Case 1088 (8C-10) - TURNTABLE LEVELER HYDRAULIC SWIVEL, P.I.N. FROM 106901 AND AFTER (08) - HYDRAULICS

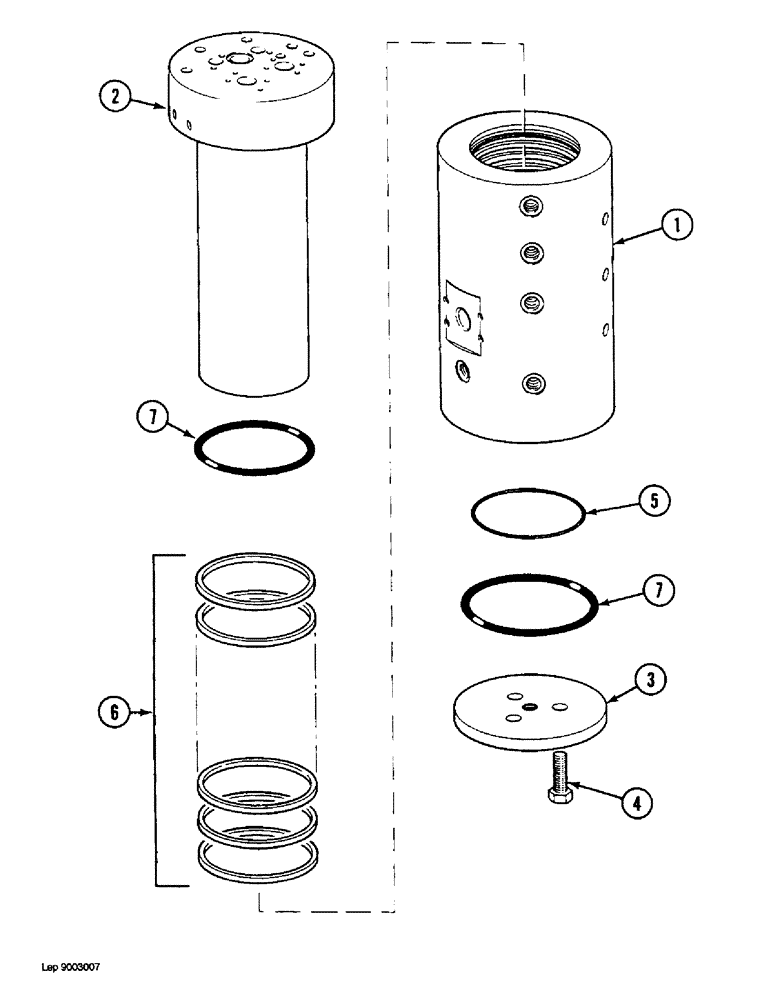

Схема запчастей Case 1088 - (8C-10) - TURNTABLE LEVELER HYDRAULIC SWIVEL, P.I.N. FROM 106901 AND AFTER (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P39040

JOINT TURNING

SWIVEL ASSEMBLY - hydraulic, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - swivel

1шт.

2

NSS

NOT SOLD SEPARAT

SWIVEL - inner

1шт.

3

P8230196

LARGE PLATE

RETAINER - inner swivel

1шт.

4

P33886

SCREW

BOLT - hex, 12 mm x 35 mm, grade 10.9

3шт.

5

P730446

O-RING

- inner, Serial Range: swivel-retainer

1шт.

6

P246034

SPECIAL MAT. SEAL

SEAL - ring, swivel

11шт.

7

P30370

O-RING

- housing, upper and lower

2шт.
