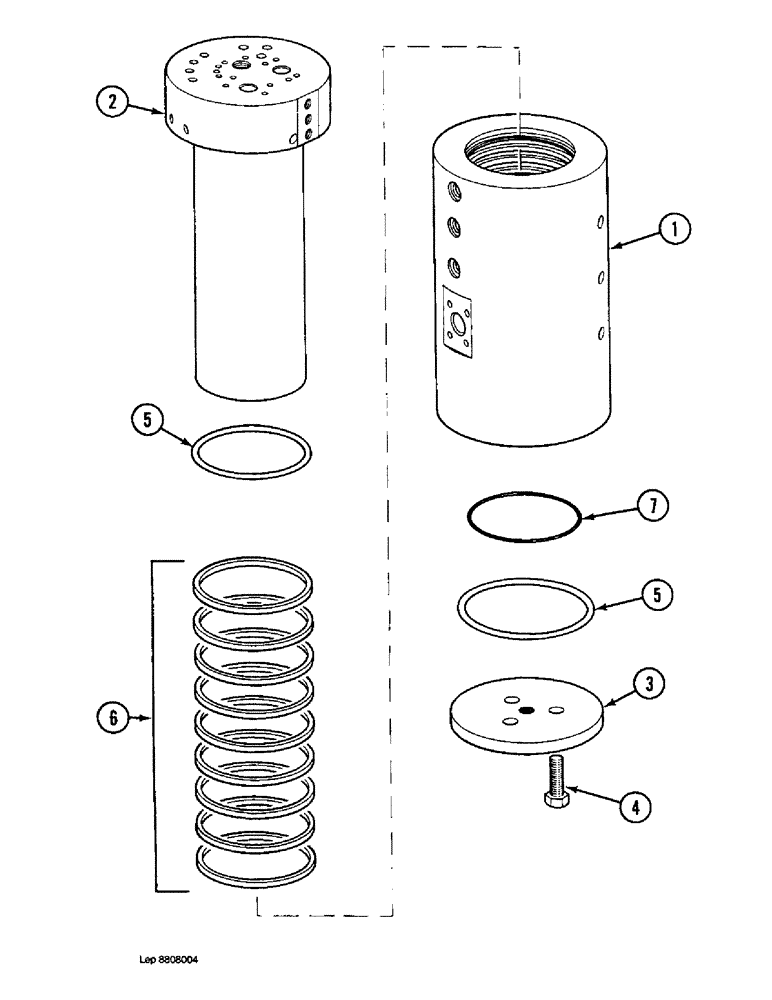

Запчасти Case 1088 (8C-08) - HYDRAULIC SWIVEL, P.I.N. FROM 19801 AND AFTER (08) - HYDRAULICS

P39025

JOINT TURNING

SWIVEL ASSEMBLY - hydraulic, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - swivel

1шт.

2

NSS

NOT SOLD SEPARAT

SWIVEL - inner

1шт.

3

P8230196

LARGE PLATE

RETAINER - inner swivel

1шт.

4

P33886

SCREW

BOLT - hex, 10 mm x 30 mm

4шт.

5

P30370

O-RING

- housing, upper and lower

2шт.

6

P246034

SPECIAL MAT. SEAL

SEAL - ring, swivel (replaces P646034)

8шт.

REF 6 S/B P246034 PER NOTE IN HARD COPY CATALOG.

1шт.

7

P1230474

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

- inner, Serial Range: swivel-retainer

1шт.
