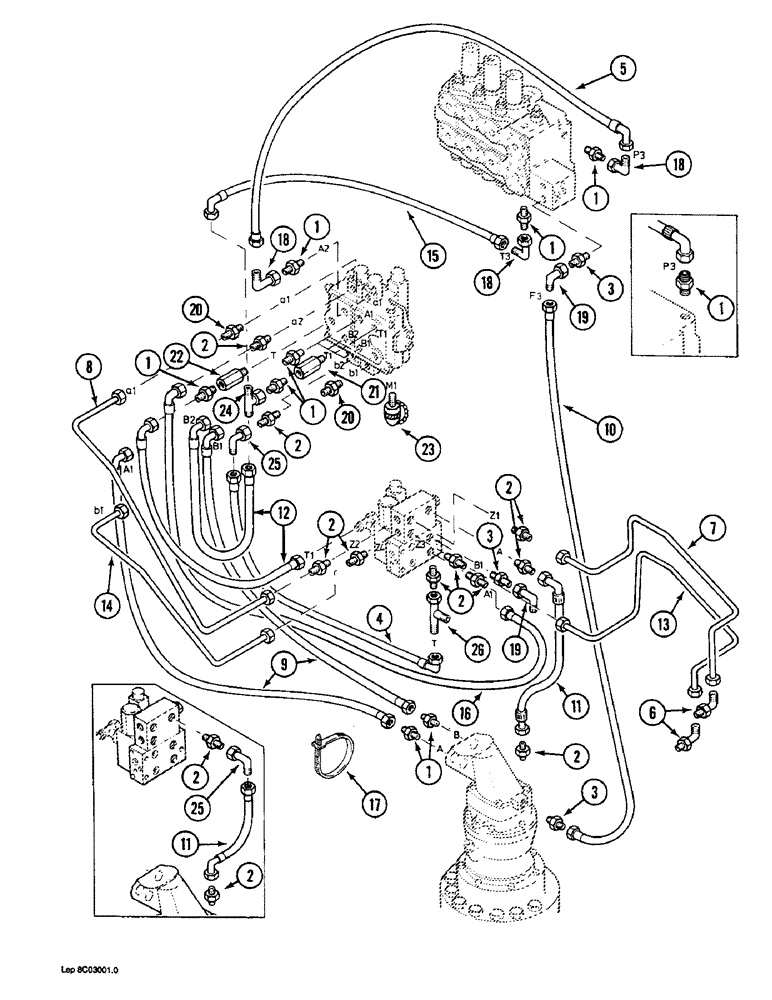

Запчасти Case 1088 (8C-06) - SWING MOTOR HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

P3237533

UNION

ADAPTER - straight

9шт.

P1145268

SEAL

- adapter

1шт.

2

P3237530

UNION

ADAPTER - straight

10шт.

P7046042

SEAL

- adapter

1шт.

3

P3237532

UNION

ADAPTER - straight

3шт.

P2230418

SEAL

- adapter

1шт.

4

P5931904

HOSE

- 19-3/4" long, return, solenoid valve to swing control valve

1шт.

5

P6631954

HOSE

-39-3/8 inch long, swing control valve to inlet and outlet section of attachment control valve

1шт.

6

P1737008

ANGLE

ELBOW - 90 degree

2шт.

7

P6749106

PIPE

TUBE - control circuit, upper port of solenoid valve block

1шт.

8

P6249021

HYD TUBE

TUBE - control circuit, upper port of solenoid valve block to upper port of swing control valve

1шт.

9

P5931924

HOSE

- 19-3/4 inch long, pressure, swing control valve to swing motor

2шт.

10

P6531979

HOSE

- 19-3/4 inch long, swing brake release

1шт.

11

P5931904

HOSE

- 19-3/4" long, leak, solenoid valve to swing motor

1шт.

12

P6531978

HOSE

- 19-3/4 inch long, return

2шт.

13

P6749107

PIPE

TUBE - control circuit, lower port of solenoid valve block

1шт.

14

P6249020

PIPE

TUBE - control circuit, lower port of solenoid valve block to lower port of swing control valve

1шт.

15

P5431963

HOSE

- 24-13/16" long, return, swing

1шт.

16

P5431965

HOSE

- 31-1/2 inch long, solenoid valve block to left upper port of swing control valve

1шт.

17

P336923

CLAMP

TIE STRAP - circuit hoses, 4-5/8 inch long

1шт.

18

P1737021

ANGLE

ELBOW - 90 degree, Serial Range: 19801-XXXXX

3шт.

18

P1737021

ANGLE

ELBOW - 90 degree, Start Serial: XXXXX

2шт.

19

P1737020

ANGLE

ELBOW - 90 degree

2шт.

20

P2643388

VALVE POPPET

ADAPTER - straight, with restrictor

2шт.

P7046042

SEAL

- adapter

1шт.

21

P2643354

VALVE POPPET

ADAPTER - special, restrictor

1шт.

P5746063

SEAL

- adapter

1шт.

22

P2643355

VALVE POPPET

ADAPTER - special, restrictor

1шт.

P5746063

SEAL

- adapter

1шт.

23

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- disconnect

1шт.

24

P1237202

TEE

- street

1шт.

25

P1737018

ANGLE

ELBOW - 90 degree, Serial Range: 19801-20199

2шт.

25

P1737018

ANGLE

ELBOW - 90 degree, Serial Range: 106901-106902

2шт.

25

P1737018

ANGLE

ELBOW - 90 degree, Start Serial: 20200

1шт.

25

P1737018

ANGLE

ELBOW - 90 degree, Start Serial: 106903

1шт.

26

P937295

TEE

- street

1шт.
