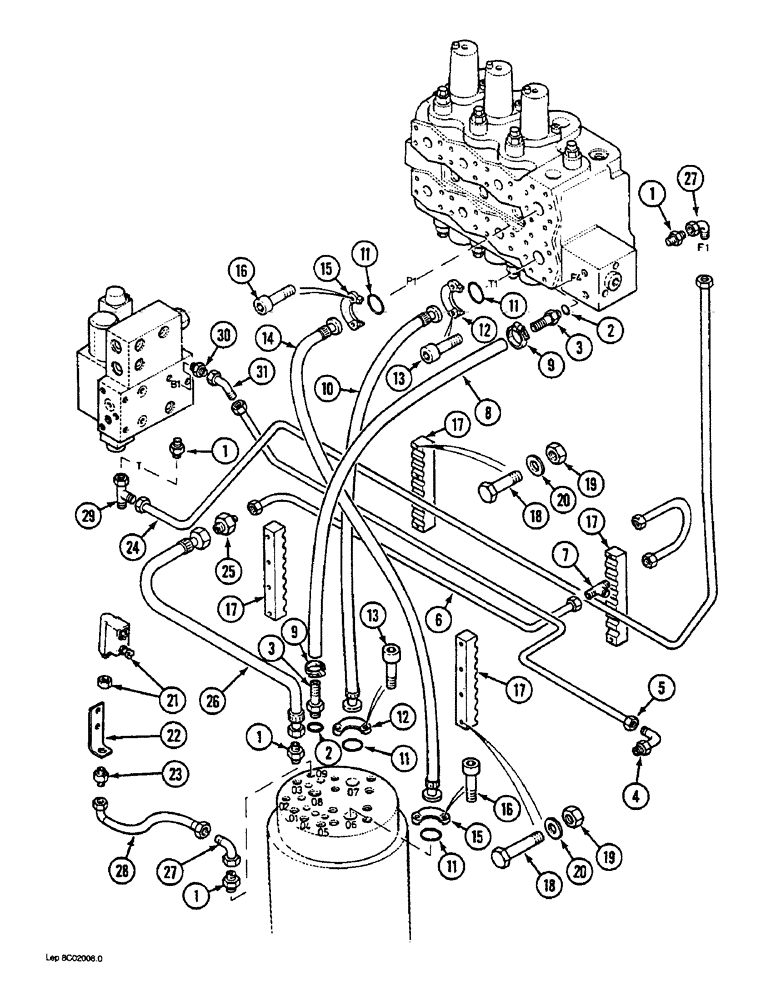

Запчасти Case 1088 (8C-04) - HYDRAULIC CONTROL CIRCUIT, SWIVEL HYDRAULIC AND PILOT CIRCUITS (08) - HYDRAULICS

1

P3237530

UNION

ADAPTER - straight

4шт.

P7046042

SEAL

- adapter

1шт.

2

P5746063

SEAL

- adapter

2шт.

3

P3237582

FITTING

ADAPTER - straight, barb hose type, (Order P4837545)

2шт.

3

P4837545

FITTING

ADAPTER - straight, barb hose type, (Replaces P3237582 and P5746063)

2шт.

P5746063

SEAL

- adapter

1шт.

4

P1737010

ANGLE

ELBOW - 90 degree

1шт.

5

P6549098

PIPE

TUBE - control circuit, solenoid valve to manifold block, (See Figure 8D-2 for continuation of circuit) (Replaces P6249024)

1шт.

6

P8647606

PIPE

TUBE - power sensing, Serial Range: tee-hose

1шт.

7

P937274

TEE

- power sensing tubes

1шт.

8

REF

INSTRUCTION

HOSE - 49-3/16 inch long, return, swivel to block, cut from P1103635

1шт.

9

P36998

COLLAR CLAMP

CLAMP - hose

2шт.

10

P6531981

HOSE

- 45 inch long, return, swivel to inlet and outlet section of attachment valve block

1шт.

11

P1230493

O-RING

- hose flange

4шт.

12

P4024273

RETAINER

SPLIT FLANGE - hose

4шт.

13

P32943

SCREW

BOLT - hex socket, 12 mm x 35 mm

8шт.

14

P6531980

HOSE

- 49-3/16 inch long, pressure, swivel to inlet and outlet section of attachment control valve

1шт.

15

P4024268

SHIN

SPLIT FLANGE - hose

4шт.

16

P32961

SCREW

BOLT - hex socket, 14 mm x 45 mm

8шт.

17

P4620329

SHIN

CLAMP - tubes, for height tubes

4шт.

18

P33822

SCREW

BOLT - hex, 8 mm x 50 mm

8шт.

19

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

8шт.

20

P3528794

WASHER

SPACER - bolt, 6 mm thick

8шт.

21

P2741637

VALVE

SWITCH - pressure, speed control circuit

1шт.

22

P5225659

SUPPORT

- switch

1шт.

23

P4037596

UNION

ADAPTER - straight

1шт.

24

P7149104

PIPE

TUBE - return, solenoid valve to attachment control valve block

1шт.

25

P3237534

UNION

ADAPTER - straight, power sensing, Serial Range: tube-hose

1шт.

26

P7931908

HOSE

- 39-3/8 inch long, leak return, filter to tee, (Replaces P5431939)

1шт.

27

P1737018

ANGLE

ELBOW - 90 degree

2шт.

28

P5431984

HOSE

- 39-3/8 inch long, pilot, hydraulic swivel to pressure switch

1шт.

29

P937295

TEE

- street

1шт.

30

P3237532

UNION

ADAPTER - straight

1шт.

P2230418

SEAL

O-RING - adapter

1шт.

31

P1737020

ANGLE

ELBOW - 90 degree

1шт.
