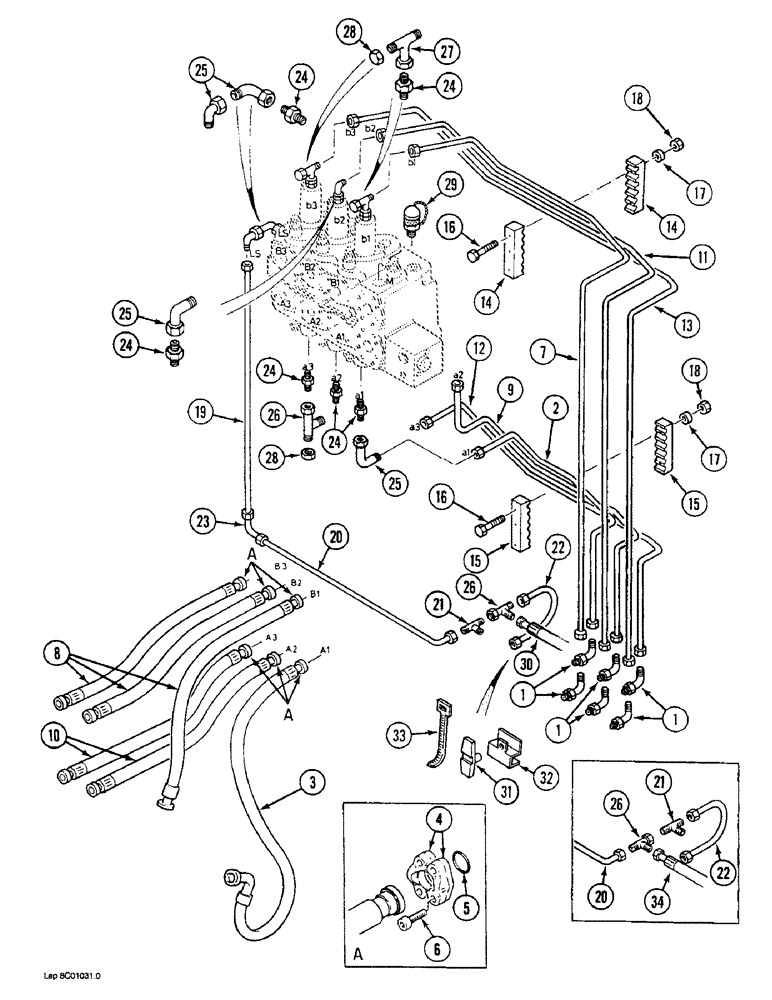

Запчасти Case 1088 (8C-02) - HYDRAULIC CONTROL CIRCUIT, TO ATTACHMENT CONTROL VALVE (08) - HYDRAULICS

1

P1737008

ANGLE

ELBOW - 90 degree

6шт.

2

P6649198

PIPE

TUBE - control, lower port of boom control section

1шт.

3

P5431998

HOSE

- 49-3/16 inch long, to boom cylinder

1шт.

4

P4024266

CLAMP

SPLIT FLANGE - hose flange

12шт.

5

P1130483

O-RING

- hose flange

6шт.

6

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

24шт.

7

P7249116

PIPE

TUBE - control, upper port of boom control section

1шт.

8

P5931978

HOSE

- 1250 mm long, to cylinder tubes and boom cylinder

3шт.

8

P5431999

HOSE

- 600 mm long

3шт.

9

P6649194

PIPE

TUBE - control, lower port of bucket control section

1шт.

10

P5931994

HOSE

- 55-1/8 inch long, to arm and bucket cylinders tubes

2шт.

11

P7249117

PIPE

TUBE - control, upper port of bucket control section

1шт.

12

P6649197

PIPE

TUBE - control, lower port of arm control section

1шт.

13

P7249115

PIPE

TUBE - control, upper port of arm control section

1шт.

14

P4420368

SHIN

CLAMP - tube, for six tubes, upper portion

2шт.

15

P4620313

SHIN

CLAMP - tube, for six tubes, lower portion

2шт.

16

P33822

SCREW

BOLT - hex, 8 mm x 50 mm

5шт.

17

P3528794

WASHER

SPACER - bolt, 6 mm thick

5шт.

18

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

5шт.

19

P4137675

PIPE

TUBE - power sensing, upper portion

1шт.

20

P6249023

PIPE

TUBE - power sensing, lower portion

1шт.

21

P2643351

BLOCK ASSY.

TEE - street

1шт.

22

P7147146

PIPE

TUBE - power sensing, (See Figure 8C-4 for continuation of circuit)

1шт.

23

P1737055

ANGLE

ELBOW - 90 degree

1шт.

24

P3237530

UNION

ADAPTER - straight

7шт.

P7046042

SEAL

- adapter

1шт.

25

P1737018

ANGLE

ELBOW - 90 degree

4шт.

26

P937295

TEE

CAP - tee

2шт.

27

P937293

TEE

- street

2шт.

28

P2537406

BLANK-OFF PLUG

CAP - tee

3шт.

29

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- disconnect

1шт.

30

REF

INSTRUCTION

HOSE - to center rotation valve, (See Figure 8D-4), Start Serial: 20242

1шт.

30

REF

INSTRUCTION

HOSE - to center rotation valve, (See Figure 8D-4), Start Serial: 106940

1шт.

31

PP2036939

CLASP

RETAINER - tie strap

1шт.

32

P2036903

CLASP

CLIP - retainer, 5/16" - 1/2" range

1шт.

33

P51946

CLAMP

TIE STRAP - hose, 10-1/8 inch long

4шт.

34

REF

INSTRUCTION

HOSE - to travel speed control valve, (See Figure 8B-16), Serial Range: 19801-20241

1шт.

34

REF

INSTRUCTION

HOSE - to travel speed control valve, (See Figure 8B-16), Serial Range: 106901-106939

1шт.
