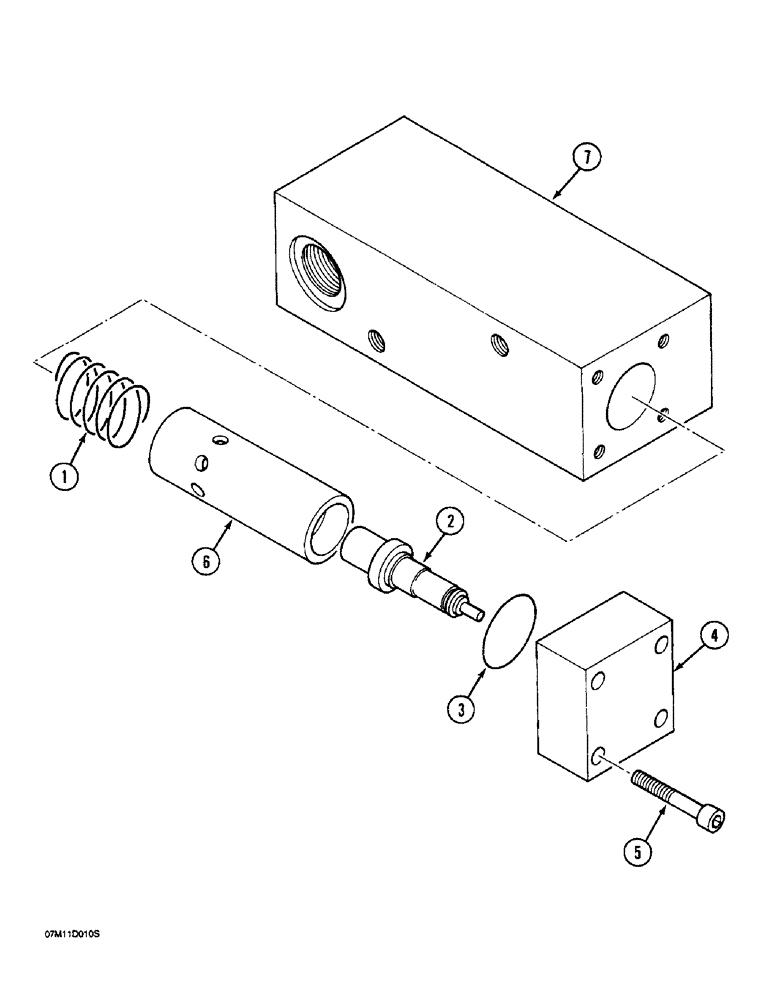

Запчасти Case 1088 (8B-60) - THERMOSTAT-CONTROLLED VALVE (08) - HYDRAULICS

P4743321

BY-PASS VALVE

VALVE ASSEMBLY - return, oil temperature regulating, Includes: Ref. 1 - 7

1шт.

1

P1538184

COMPRESSION SPRING

SPRING - valve

1шт.

2

P4043369

ELEMENT

VALVE ASSEMBLY - regulator

1шт.

3

P30405

O-RING

- cover

1шт.

4

P4323316

COVER

- valve

1шт.

5

P0732978Q

SCREW

4шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE - regulator valve

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - valve assembly

1шт.
