(8B-58) - LEAK RETURN VALVE FILTER, P.I.N. FROM 19801 TO XXXXX, P.I.N. FROM 106901 TO XXXXXX

Запчасти Case 1088 (8B-58) - LEAK RETURN VALVE FILTER, P.I.N. FROM 19801 TO XXXXX, P.I.N. FROM 106901 TO XXXXXX (08) - HYDRAULICS

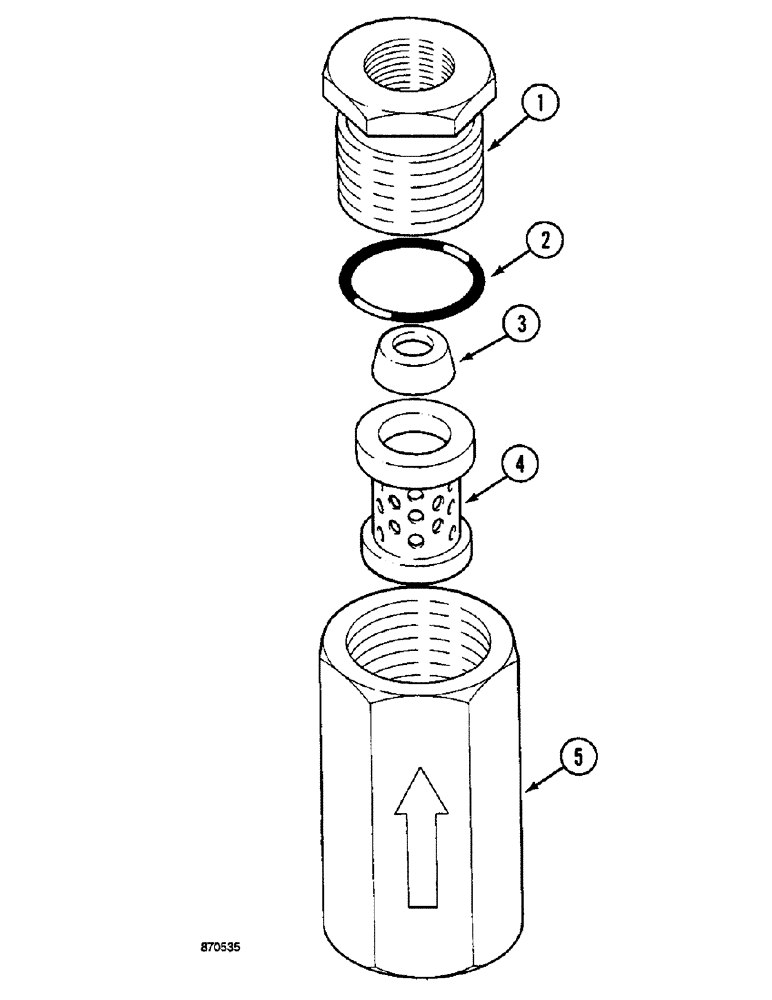

Схема запчастей Case 1088 - (8B-58) - LEAK RETURN VALVE FILTER, P.I.N. FROM 19801 TO XXXXX, P.I.N. FROM 106901 TO XXXXXX (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P7646290

ASSEMBLY

FILTER ASSEMBLY - leak return line, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CAP - filter body

1шт.

2

P1145268

SEAL

- cap

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - filter element

1шт.

4

P1950574

CARTRIDGE

ELEMENT - filter, leak return

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - filter

1шт.
