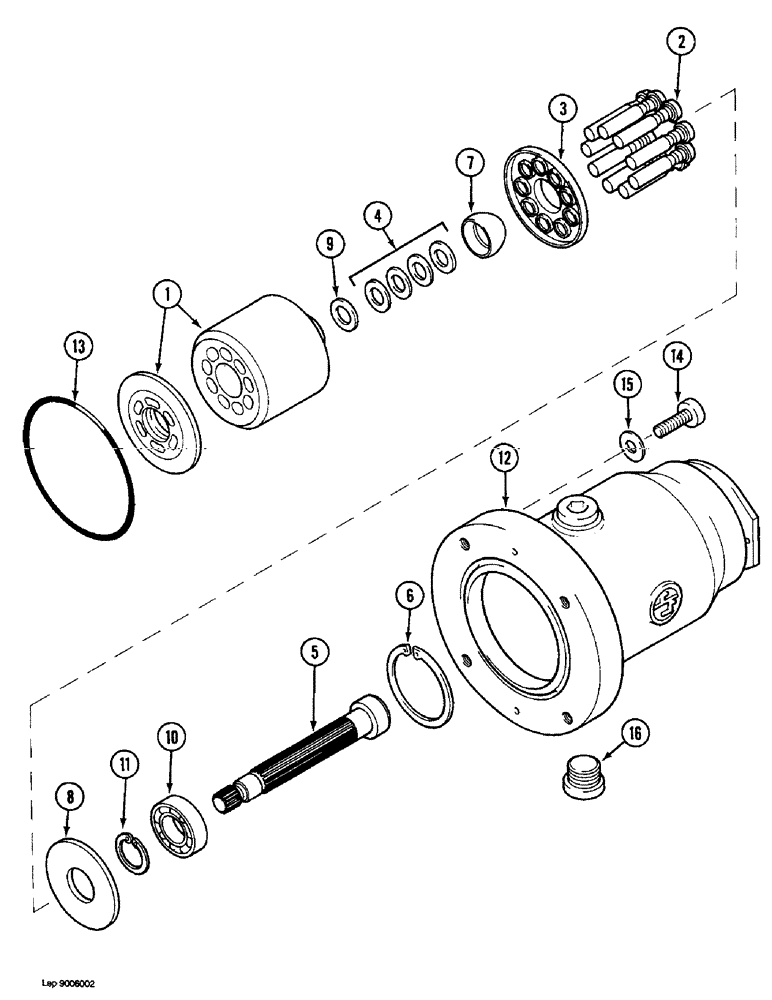

Запчасти Case 1088 (8B-44) - ROTARY GROUP, P.I.N. FROM 20174 AND AFTER, P.I.N. FROM 106901 AND AFTER (08) - HYDRAULICS

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - high pressure, (Continued from Figure 8B-36 or 8B-37A)

1шт.

P4543575

PUMP, HYDRAULIC

ROTATING GROUP ASSEMBLY - swing control, fixed flow, Includes: Ref. 1 - 16

1шт.

P3843642

ROTOR

ROTATING GROUP - swing control, fixed flow, Includes: Ref. 1 - 11

1шт.

1

P8846229

LOCK, CYLINDER

BARREL - rotating group

1шт.

2

P8846201

PISTON

- small, swing control

9шт.

3

P2346314

LARGE PLATE

PLATE ASSEMBLY - piston shoe, (Replaces P1946366)

1шт.

4

P2346313

SPARE PART SET

KIT - washer spring, (Replaces P1946363)

1шт.

5

P2727925

DRIVE SHAFT

SHAFT - drive, internal piston pump

1шт.

6

P36234

RING, SNAP

SNAP RING - retainer, large

1шт.

7

P4128904

ASSEMBLY

KNUCKLE - oscillating plate, (Replaces P2728991)

1шт.

8

P1946364

DISC

PLATE - swash

1шт.

9

P1946365

BLOCK

SHIM - barrel

1шт.

10

P1139871

BEARING

-, Serial Range: plate,-shaft

1шт.

11

P36317

RING, SNAP

SNAP RING - bearing, small

1шт.

12

P5240371

HOUSING

- swing control rotating group

1шт.

13

P3230405

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- swing control rotating group housing to bearing housing

1шт.

14

P1232971

SCREW

BOLT - hex socket, 12 mm x 30 mm

4шт.

15

P34713

WASHER

- lock

4шт.

16

P3237487

PLUG

- housing

2шт.

P2230418

SEAL

- plug

1шт.
