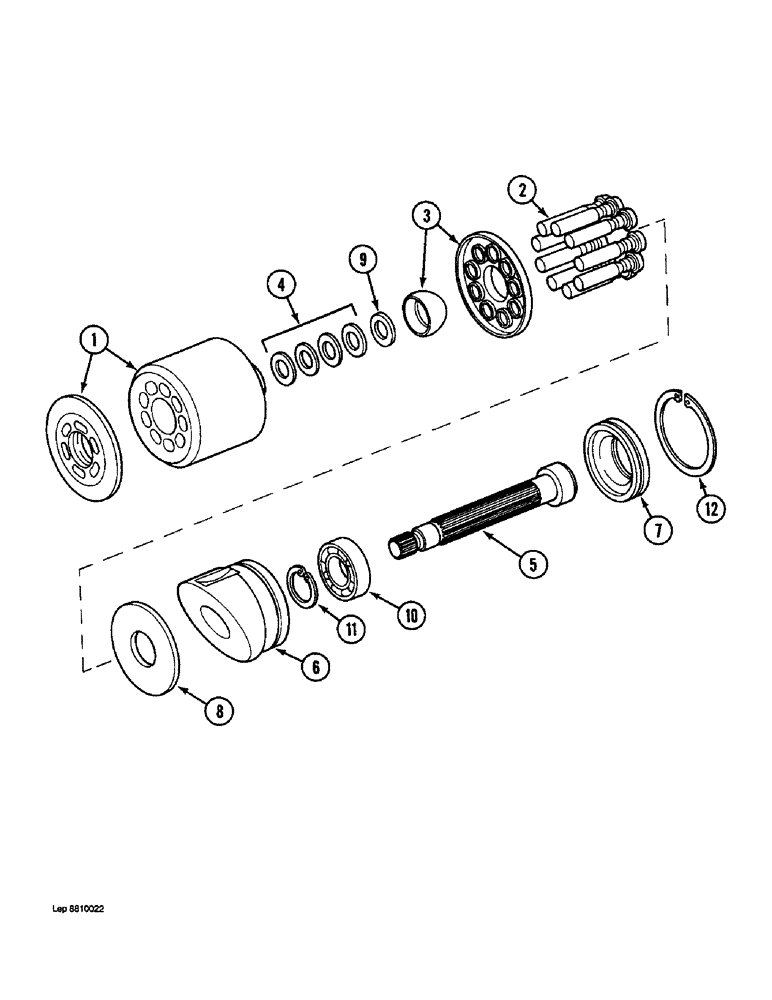

Запчасти Case 1088 (8B-42) - ROTARY GROUP, P.I.N. FROM 19801 TO 20173 (08) - HYDRAULICS

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - high pressure, (Continued from Figure 8B-34), Includes: Ref. 1 - 12

1шт.

P3343688

ROTOR

ROTATING GROUP - swing control, fixed flow, (See T.I.N. 3149)

1шт.

1

P8646299

LOCK, CYLINDER

BARREL - rotating group, (See T.I.N. 3149)

1шт.

2

P8846201

PISTON

- small, swing control, (Replaces P8346220)

9шт.

3

P8346221

LARGE PLATE

PLATE ASSEMBLY - piston shoe

1шт.

4

P8346222

SPARE PART SET

KIT - washer spring

1шт.

5

P2727915

SHAFT

- drive, internal piston pump

1шт.

6

P4343333

SHIN

PLATE - swash, fixed flow, (See T.I.N. 3149)

1шт.

7

P2728965

FLANGE

RETAINER - bearing

1шт.

8

P1946316

DISC

PLATE - swash

1шт.

9

P1946317

BLOCK

SHIM - barrel

1шт.

10

P2039834

BEARING

-, Serial Range: plate,-shaft

1шт.

11

P36317

RING, SNAP

SNAP RING - bearing, small

1шт.

12

P436351

RING, SNAP

SNAP RING - retainer, large

1шт.
