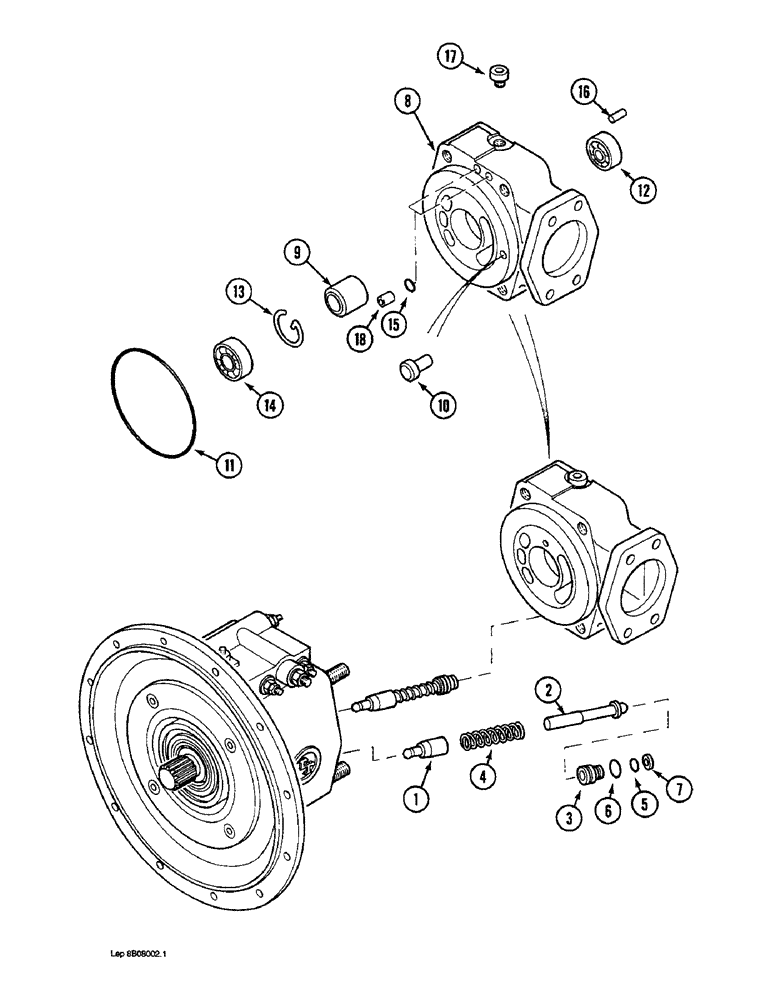

Запчасти Case 1088 (8B-41A) - HYDRAULIC CONTROL AND PORT PLATE ASSEMBLY (08) - HYDRAULICS

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - high pressure, (Continued from Figures 8B-34, 8B-36 or 8B-37A), Includes: Ref. 1 - 18

1шт.

P8346217

PISTON

ASSEMBLY - hydraulic control pump

2шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER - piston assembly

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON - piston assembly

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT - piston

1шт.

4

P1038244

SPRING

- piston control

1шт.

5

P2930427

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- small, piston

1шт.

6

P2930428

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

- large, piston

1шт.

7

P1245270

BACK-UP RING

BACKUP RING - O-ring

1шт.

P8846292

HEAD (CYLINDER)

HOUSING ASSEMBLY - hydraulic pump, Includes: Ref. 8 - 18

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

9

P4229116

TRANSMISSION SLEEVE

SLEEVE - shaft

1шт.

10

P1136005

SPLIT PIN/SAFETY PIN

PIN - shaft, position

2шт.

11

P2930423

O-RING

- large, housing

1шт.

12

P2039831

BEARING

- small, at the rear of housing

1шт.

13

P3036993

SPECIAL RING

SNAP RING - bearing

1шт.

14

P2039832

BEARING

- large, at the front of housing

1шт.

15

P2930476

O-RING

- small, housing

2шт.

16

P1136006

SPLIT PIN/SAFETY PIN

PIN - housing to swing control housing

1шт.

17

P3237483

PLUG

- housing

2шт.

P2230426

SEAL

SEAT - plug

1шт.

18

P435753

SPLIT PIN/SAFETY PIN

PIN - housing

2шт.
