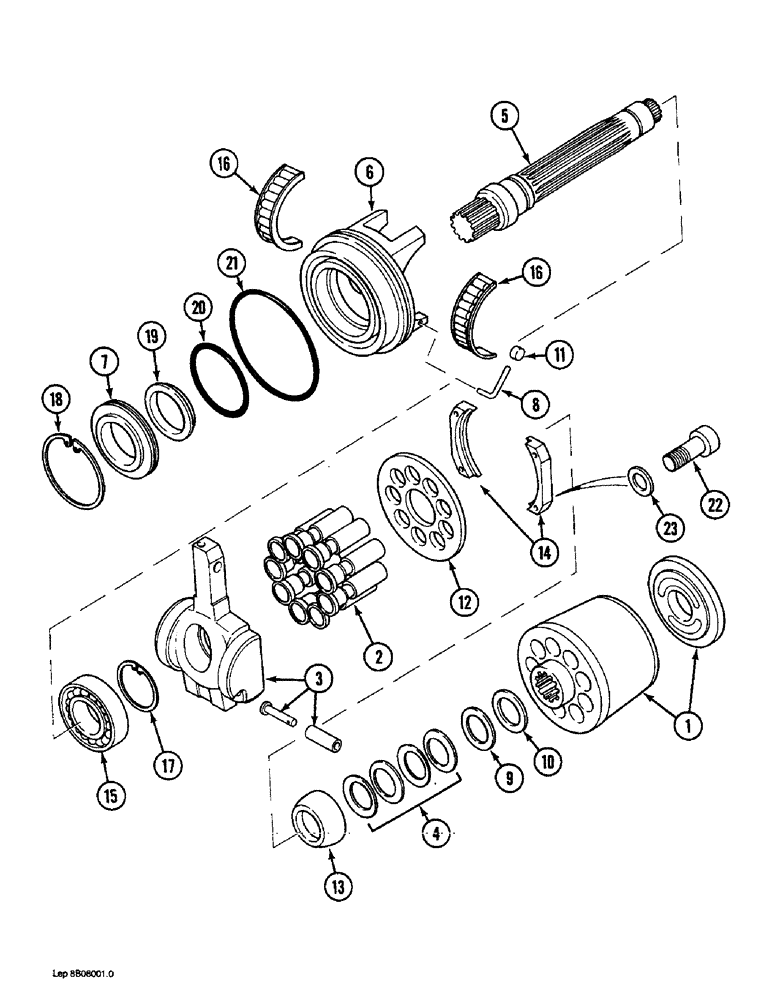

Запчасти Case 1088 (8B-38) - ROTARY GROUP (08) - HYDRAULICS

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - high pressure, (Continued from Figures 8B-34, 8B-36 or 8B-37A), Includes: Ref. 1 - 23

1шт.

P3343656

ROTOR

ROTATING GROUP - hydraulic pump

1шт.

1

P8346210

LOCK, CYLINDER

BARREL - cylinder

1шт.

2

P8346211

PISTON

- barrel, large

9шт.

3

P8646271

CRADLE

PLATE - swash, variable

1шт.

4

P8346214

SPARE PART SET

KIT - washer, spring

1шт.

5

P1928022

SHAFT

- drive, piston pump

1шт.

6

P2728992

SHIN

PLATE - swash, (Replaces P2728962 and P2728989)

1шт.

7

P2728969

FLANGE

RETAINER - seal

1шт.

8

P8846202

ELECTRICAL WIRE

RETAINER - roller, (Replaces P8346215)

2шт.

9

P1946315

BLOCK

SHIM - barrel

1шт.

10

P3145338

BLOCK

SHIM - barrel adjusting

1шт.

11

P8346216

SHIFTER ROLLER

ROLLER - bearing

2шт.

12

P2728979

LARGE PLATE

PLATE - piston pump shoe

1шт.

13

P2728974

BALL JOINT

WASHER - spherical

1шт.

14

P2728980

SHIN

BRACKET- plate swash

2шт.

15

P2039833

BEARING

- output shaft, plate

1шт.

16

P945916

BEARING, ROLLER

BEARING - half section

1шт.

REF# 16 - The catalog is incorrect. Catalog shows 1 piece required, it actually takes 2 pieces. The bearing comes in half sections.

1шт.

17

P36337

RING, SNAP

SNAP RING - drive shaft bearing

1шт.

18

P36256

RING, SNAP

SNAP RING - seal retainer

1шт.

19

P9646053

GASKET

SEAL - shaft, retainer, (Replaces P8846071)

1шт.

20

P2930425

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- small, retainer

1шт.

21

P2930426

O-RING

- large, plate swash

1шт.

22

P32911

SCREW

BOLT - hex socket, 6 mm x 20 mm, (Replaces P32910)

4шт.

23

P34707

WASHER

- lock, if used

4шт.
