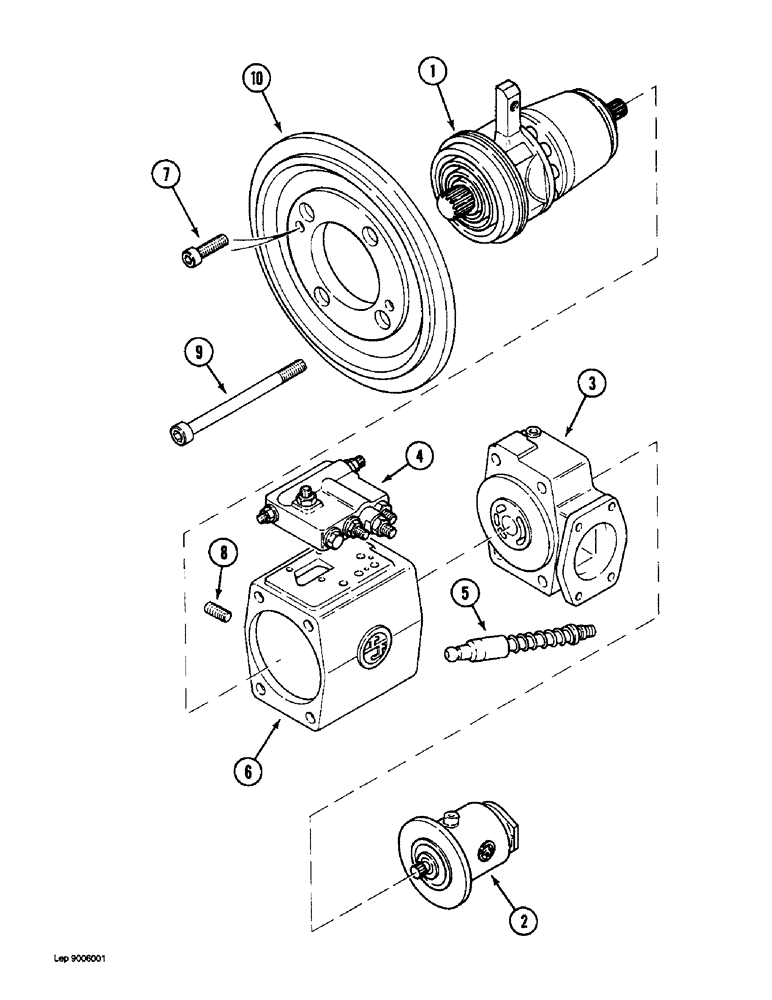

Запчасти Case 1088 (8B-36) - HIGH PRESSURE HYDRAULIC PUMP, P.I.N. FROM 20174 AND AFTER, P.I.N FROM 106901 AND AFTER (08) - HYDRAULICS

P4543568

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY - high pressure, (See T.I.N. 3218), Includes: Ref. 1 - 10

1шт.

1

REF

INSTRUCTION

ROTATING GROUP - high pressure pump, adjustable flow, (See Figure 8B-38)

1шт.

2

REF

INSTRUCTION

ROTATING GROUP - high pressure pump, swing control, fixed flow, (See Figure 8B-44)

1шт.

3

REF

INSTRUCTION

HOUSING - bearing, (See Figure 8B-40)

1шт.

4

REF

INSTRUCTION

REGULATOR BLOCK ASSEMBLY - high pressure hydraulic pump, (See Figure 8B-50)

1шт.

5

REF

INSTRUCTION

PISTON ASSEMBLY - hydraulic control, (See Figure 8B-40)

2шт.

6

P5140339

HOUSING

BODY - pump assembly

1шт.

7

P32911

SCREW

BOLT - hex socket, 6 mm x 20 mm

2шт.

8

P8346208

STEM

PIN - anti-roll device

1шт.

9

P1532928

SCREW

BOLT - hex socket, 20 mm x 250 mm, grade 10.9

4шт.

10

P150299

SHIN

HOUSING - pump assembly

1шт.
