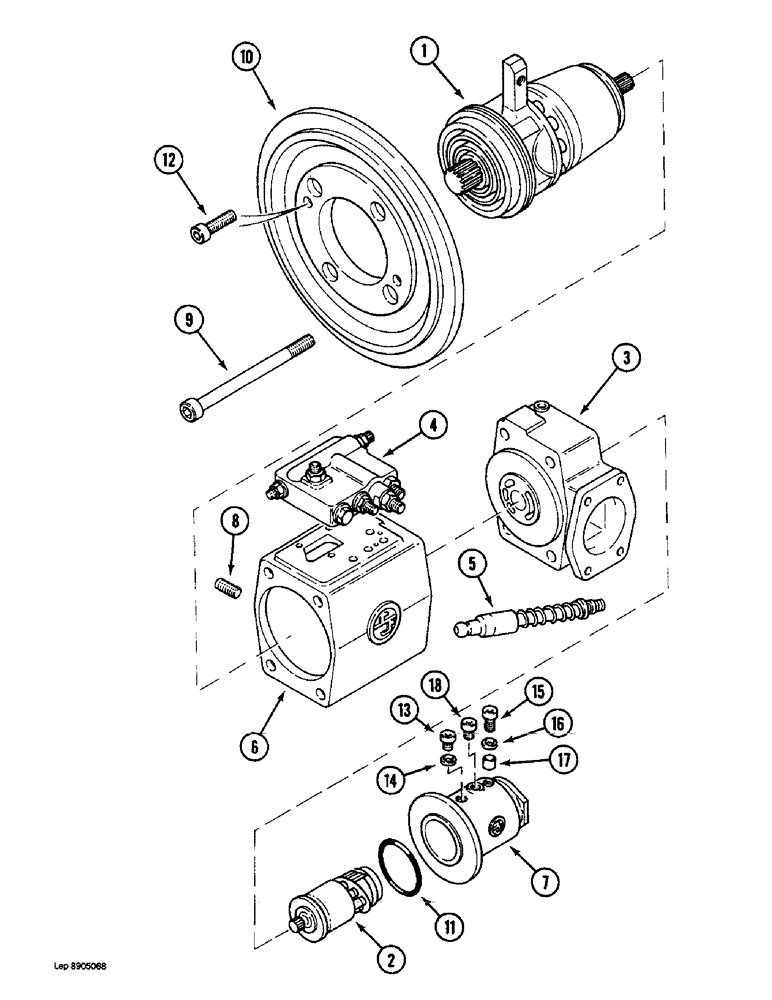

Запчасти Case 1088 (8B-34) - HIGH PRESSURE HYDRAULIC PUMP, P.I.N. FROM 19801 TO 20173 (08) - HYDRAULICS

P4543561

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY - high pressure, (Order 1 @ P4543568, 1 @ P3230409), Includes: Ref. 1 - 18, Serial Range: 20029-20031

1шт.

P4543561

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY - high pressure, (Order 1 @ P4543568, 1 @ P3230409), Includes: Ref. 1 - 18, Serial Range: 22037-20039

1шт.

P4543561

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY - high pressure, (Order 1 @ P4543568, 1 @ P3230409), Includes: Ref. 1 - 18, Serial Range: 20041-20047

1шт.

P4543561

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY - high pressure, (Order 1 @ P4543568, 1 @ P3230409), Includes: Ref. 1 - 18, Serial Range: 20049-20173

1шт.

P4543541

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY - high pressure, (Order 1 @ P4543568, 1 @ P3230409), Includes: Ref. 1 - 18, Serial Range: 19801-20028

1шт.

P4543541

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY - high pressure, (Order 1 @ P4543568, 1 @ P3230409), Includes: Ref. 1 - 18, Serial Range: 20030-20038

1шт.

P4543541

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY - high pressure, (Order 1 @ P4543568, 1 @ P3230409), Includes: Ref. 1 - 18, Serial Range: 20040-20048

1шт.

1

REF

INSTRUCTION

ROTATING GROUP - high pressure pump, adjustable flow, (See Figure 8B-38)

1шт.

2

REF

INSTRUCTION

ROTATING GROUP - high pressure pump, swing control, fixed flow, (See Figure 8B-42)

1шт.

3

REF

INSTRUCTION

HOUSING - bearing (See Figure 8B-40)

1шт.

4

REF

INSTRUCTION

REGULATOR BLOCK ASSEMBLY - high pressure hydraulic pump, (See Figure 8B-46), Serial Range: 19801-20173

1шт.

5

REF

INSTRUCTION

PISTON ASSEMBLY - hydraulic control, (See Figure 8B-40)

2шт.

6

P5140339

HOUSING

BODY - pump assembly

1шт.

7

P5240334

HOUSING

- swing control rotating group, (See T.I.N. 3149)

1шт.

8

P8346208

STEM

PIN - anti-roll device

1шт.

9

P1532928

SCREW

BOLT - hex socket, 20 mm x 250 mm, grade 10.9

4шт.

10

P150299

SHIN

HOUSING - pump assembly

1шт.

11

P2930422

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

- swing control rotating group housing to bearing housing

1шт.

12

P32911

SCREW

BOLT - hex socket, 6 mm x 20 mm

2шт.

13

P1232958

SCREW

BOLT - hex socket, 8 mm x 45 mm, grade 10.9

4шт.

14

P34713

WASHER

- lock

4шт.

15

P3533022

SCREW

BOLT - hex, socket

1шт.

16

P8846070

BUSHING

SEAL - bolt

1шт.

17

P5428766

CENTER JOINT

RETAINER - plate, swash

1шт.

18

P3237487

PLUG

- housing

2шт.

P2230418

SEAL

O-RING - plug

1шт.
