(8B-28) - HYD. PUMP LINES, THERMOSTAT-CONTROLLED VALVE, P.I.N. FROM 19801- XXXXX, P.I.N. FROM 106901 - XXXXXX

Запчасти Case 1088 (8B-28) - HYD. PUMP LINES, THERMOSTAT-CONTROLLED VALVE, P.I.N. FROM 19801- XXXXX, P.I.N. FROM 106901 - XXXXXX (08) - HYDRAULICS

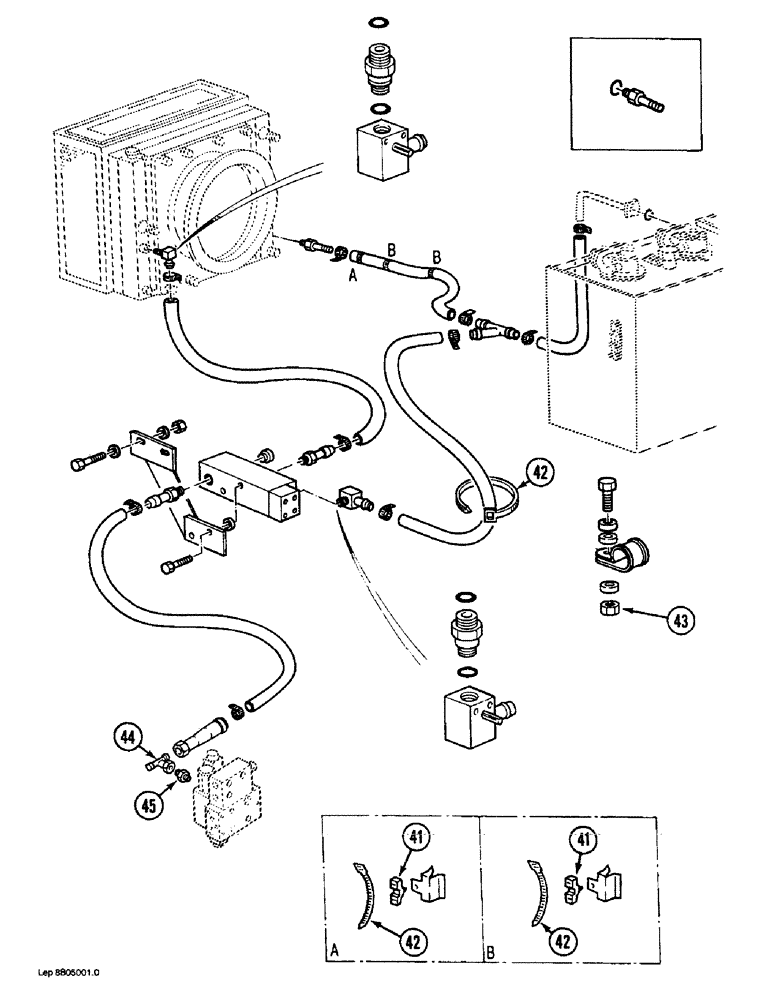

Схема запчастей Case 1088 - (8B-28) - HYD. PUMP LINES, THERMOSTAT-CONTROLLED VALVE, P.I.N. FROM 19801- XXXXX, P.I.N. FROM 106901 - XXXXXX (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

41

PP2036939

CLASP

RETAINER - tie strap

1шт.

42

P51946

CLAMP

TIE STRAP - hoses, 10-1/8 inch long

5шт.

43

P234513

SAFETY NUT

NUT - hex, 6 mm

1шт.

44

P1237202

TEE

- street

1шт.

45

P3237533

UNION

ADAPTER - straight

1шт.

P1145268

SEAL

- adapter

1шт.
