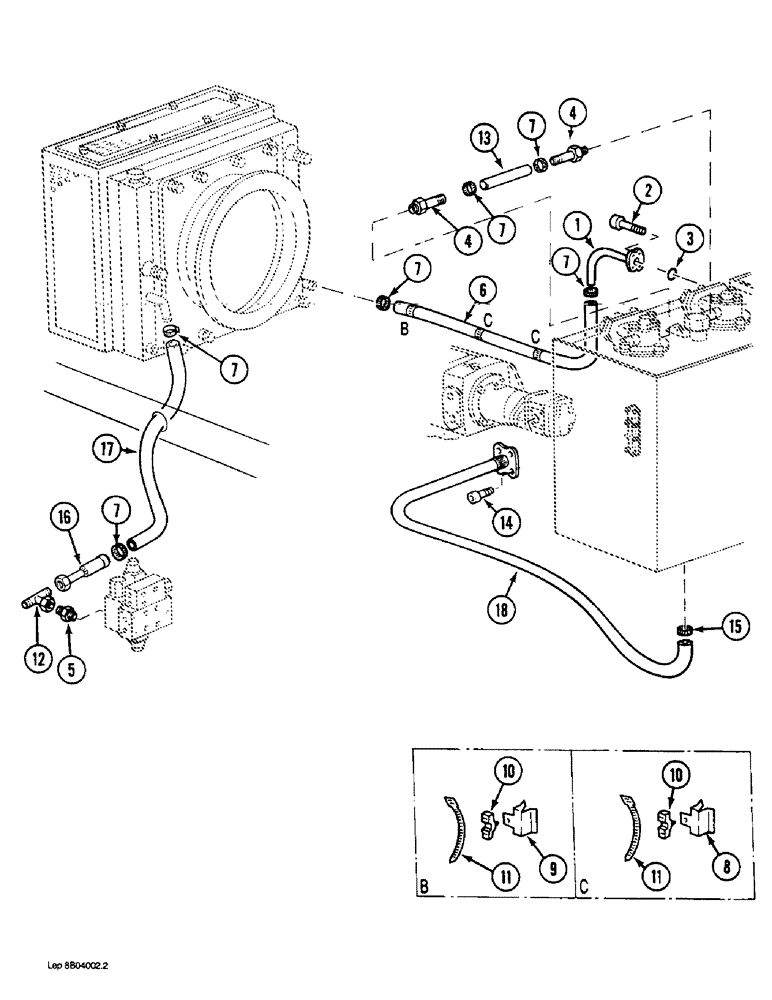

Запчасти Case 1088 (8B-24) - HYDRAULIC PUMP LINES, LOW PRESSURE PUMP SUCTION AND OIL FILTERS LINES P.I.N. FROM XXXXX AND AFTER (08) - HYDRAULICS

1

P7147154

PIPE

TUBE - return, Serial Range: cooler-reservoir

1шт.

2

P32932

SCREW

BOLT - hex socket, 10 mm x 25 mm

4шт.

3

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube at reservoir

1шт.

4

P4837545

FITTING

ADAPTER - straight, barb hose type

2шт.

P5746063

SEAL

- adapter

1шт.

5

P3237533

UNION

ADAPTER - straight

1шт.

P1145268

SEAL

- adapter

1шт.

6

REF

INSTRUCTION

HOSE - oil cooler to reservoir, 1800 mm long, cut from P1103635

2шт.

7

P36998

COLLAR CLAMP

CLAMP - hose

6шт.

8

P2036902

CLASP

CLIP - retainer, 3 mm to 7 mm range

2шт.

9

P2036903

CLASP

CLIP - retainer, 8 mm to 13 mm range

1шт.

10

P2036939

CLASP

RETAINER - tie strap

3шт.

11

P51946

CLAMP

TIE STRAP - hoses, 258 mm long

3шт.

12

P1237202

TEE

- street

1шт.

13

REF

INSTRUCTION

HOSE - filter to filter, 250 mm long, cut from P1103635

1шт.

14

P32912

SCREW

BOLT - hex socket, 6 mm x 25 mm

4шт.

15

P3836919

COLLAR CLAMP

CLAMP - hoses

2шт.

16

P4250112

TRANSMISSION SLEEVE

COUPLING - return, solenoid valve to oil cooler

1шт.

17

REF

INSTRUCTION

HOSE - solenoid valve to oil cooler, 1000 mm long, cut from P1103635

1шт.

18

P7631937

HOSE

- reservoir to low pressure pump, 650 mm long

1шт.

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- hose

1шт.
