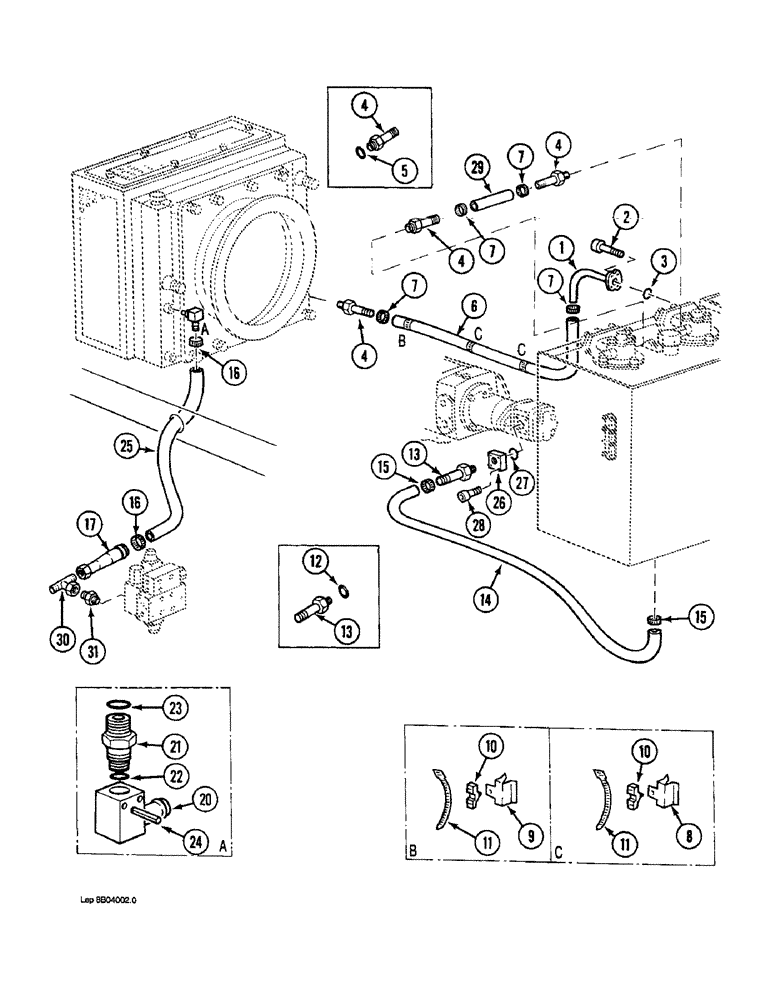

Запчасти Case 1088 (8B-20) - HYDRAULIC PUMP LINES, LOW PRESSURE PUMP SUCTION AND OIL FILTERS LINES (08) - HYDRAULICS

1

P7147154

PIPE

TUBE - return, Serial Range: cooler-reservoir

1шт.

2

P32932

SCREW

BOLT - hex socket, 10 mm x 25 mm

4шт.

3

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube at reservoir

1шт.

4

P3237582

FITTING

ADAPTER - straight, barb hose type, (Order P4837545)

3шт.

5

P5746063

SEAL

- adapter

3шт.

4

P4837545

FITTING

ADAPTER - straight, barb hose type, (Replaces P3237582 and P5746063)

3шт.

P5746063

SEAL

- adapter

1шт.

6

REF

INSTRUCTION

HOSE - oil cooler to reservoir, 1800 mm long, cut from P1103635

2шт.

7

P36998

COLLAR CLAMP

CLAMP - hose

4шт.

8

P2036902

CLASP

CLIP - retainer, 3 mm to 7 mm range

2шт.

9

P2036903

CLASP

CLIP - retainer, 8 mm to 13 mm range

1шт.

10

P2036939

CLASP

RETAINER - tie strap

3шт.

11

P51946

CLAMP

TIE STRAP - hoses, 258 mm long

3шт.

12

P5746063

SEAL

- adapter

1шт.

13

P3237586

FITTING

ADAPTER - straight, barb hose type, (Order P4837546)

1шт.

13

P4837546

FITTING

ADAPTER - straight, barb hose type, (Replaces P3237586 and P5746063)

1шт.

P5746063

SEAL

- adapter

1шт.

14

REF

INSTRUCTION

HOSE - reservoir to low pressure pump, 630 mm long, cut from P1103634, (Order P1103658, 630 mm long, and P3836919)

1шт.

14

REF

INSTRUCTION

HOSE - reservoir to low pressure pump, 630 mm long, cut from P1103658

1шт.

15

P3836919

COLLAR CLAMP

CLAMP - hoses, (Replaces P36903)

4шт.

16

P36902

COLLAR CLAMP

CLAMP - hose, large

2шт.

17

P5137757

TRANSMISSION SLEEVE

COUPLING - return, solenoid valve to oil cooler

1шт.

P5137755

FITTING

ADAPTER ASSEMBLY - return hose, Includes: Ref. 20 - 24

1шт.

20

P5137758

BODY

- adapter

1шт.

21

P4037541

LARGE PIN

ADAPTER - straight

1шт.

22

P430411

O-RING

- adapter

1шт.

23

P5746063

SEAL

- adapter

1шт.

24

P35725

SPLIT PIN/SAFETY PIN

ROLL PIN - adapter body

1шт.

25

REF

INSTRUCTION

HOSE - solenoid valve to oil cooler, 1000 mm long, cut from P1103645

1шт.

26

P5137766

SHIN

FLANGE - suction, low pressure pump

1шт.

27

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- flange

1шт.

28

P32912

SCREW

BOLT - hex socket, 6 mm x 25 mm

4шт.

29

REF

INSTRUCTION

HOSE - filter to filter, 250 mm long, cut from P1103635

1шт.

30

P1237202

TEE

- street

1шт.

31

P3237533

UNION

ADAPTER - straight

1шт.

P1145268

SEAL

O-RING - adapter

1шт.
