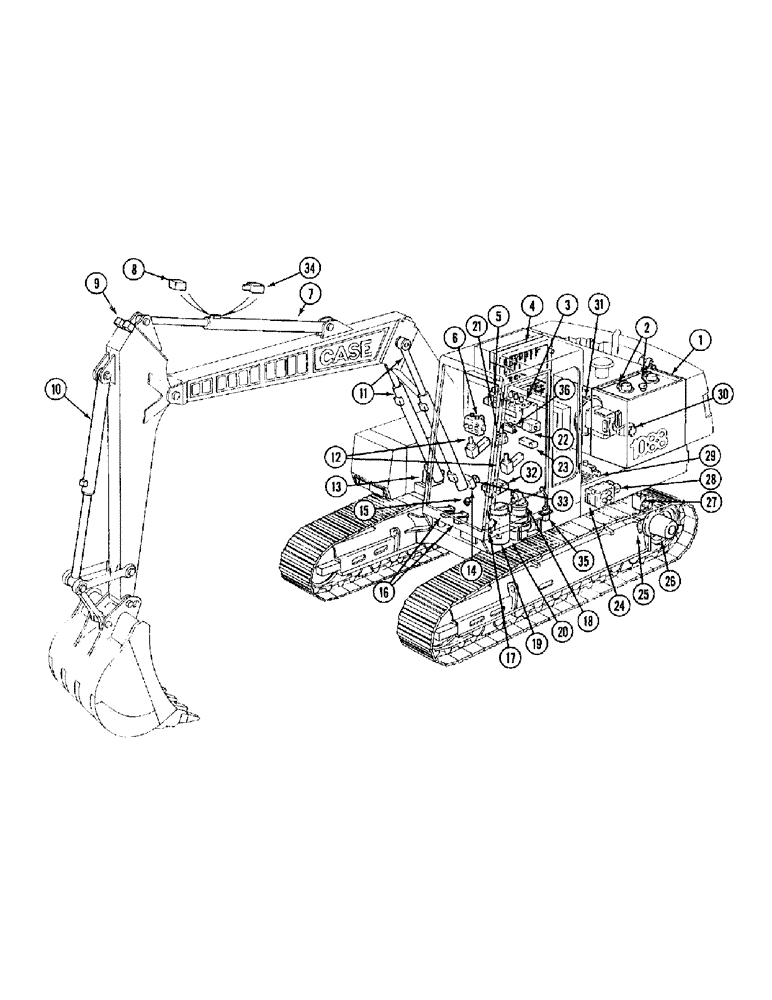

Запчасти Case 1088 (1-08) - PICTORIAL INDEX, HYDRAULIC COMPONENTS (00) - PICTORIAL INDEX

1

Hydraulic Reservoir, Page 8A-2

1шт.

2

Hydraulic Return Filter, Page 8A-6

1шт.

3

Attachment Control Valve, Page 8C-12

1шт.

4

Oil Cooler and Radiator, Pages 2-10, 2-12

1шт.

5

Control Valve for Options, Pages 8F-14, 8F-16

1шт.

6

Swing Control Valve, Page 8C-26

1шт.

7

Arm Cylinder, Pages 8G-26, 8G-28, 8G-30

1шт.

8

Arm Cylinder Block Assembly, Page 8G-22

1шт.

9

Manifold Block, Page 8G-34

1шт.

10

Tool Cylinder, Pages 8G-38, 8G-40

1шт.

11

Boom Cylinders, Pages 8G-14, 8G-16, 8G-18

1шт.

12

Hand Control Valve, Pages 8D-8 - 8D-12

1шт.

13

Hydraulic Hammer Control Valve, Page 8E-14

1шт.

14

Block Assembly, Page 8G-10

1шт.

15

Hydraulic Foot Pump, Pages 9D-4, 9D-6

1шт.

16

Foot Control Valve, Page 8D-14

1шт.

17

Optional Foot Control Valve, Page 8D-14

1шт.

17

Optional Foot Control Valve, Hydraulic Hammer, Page 8E-18

1шт.

18

Swing Drive Motor, Page 8C-24

1шт.

19

Hydraulic Swivel, Pages 8C-8, 8C-10

1шт.

20

Swing Transmission, Page 6-14

1шт.

21

Solenoid Valve and Swing Brake Release, Page 8C-20

1шт.

22

Attachment Control Valve Block, Pages 8C-16, 8C-18

1шт.

23

Thermostat Control Valve, Page 8B-60

1шт.

24

Drive Control Valve, Page 7-14

1шт.

25

Track Drive Hydraulic Motor, Page 7-16

1шт.

26

Final Drive Transmission, Pages 6-4 - 6-10

1шт.

27

Travel Speed Limiter Valve, Page 7-18

1шт.

28

Brake Release Valve, Page 7-20

1шт.

29

Anti Surge Valve, Pages 8B-54, 8B-56

1шт.

30

Low Pressure Hydraulic Pump, Page 8B-32

1шт.

31

High Pressure Hydraulic Pump, Pages 8B-34, 8B-36

1шт.

32

Counter Rotation Valve, (P.I.N. from 19801 to 20241), Pages 8D-16, 8D-18

1шт.

33

Load Holding Valve, Boom Cylinders, Page 8G-12

1шт.

34

Load Holding Valve, Arm Cylinder, Page 8G-32

1шт.

35

Travel Control Block, (P.I.N. from 20242 and after), Page 8D-20

1шт.

36

Speed Control Limiter Valve, (P.I.N. from 20242 and after), Page 8D-22

1шт.
