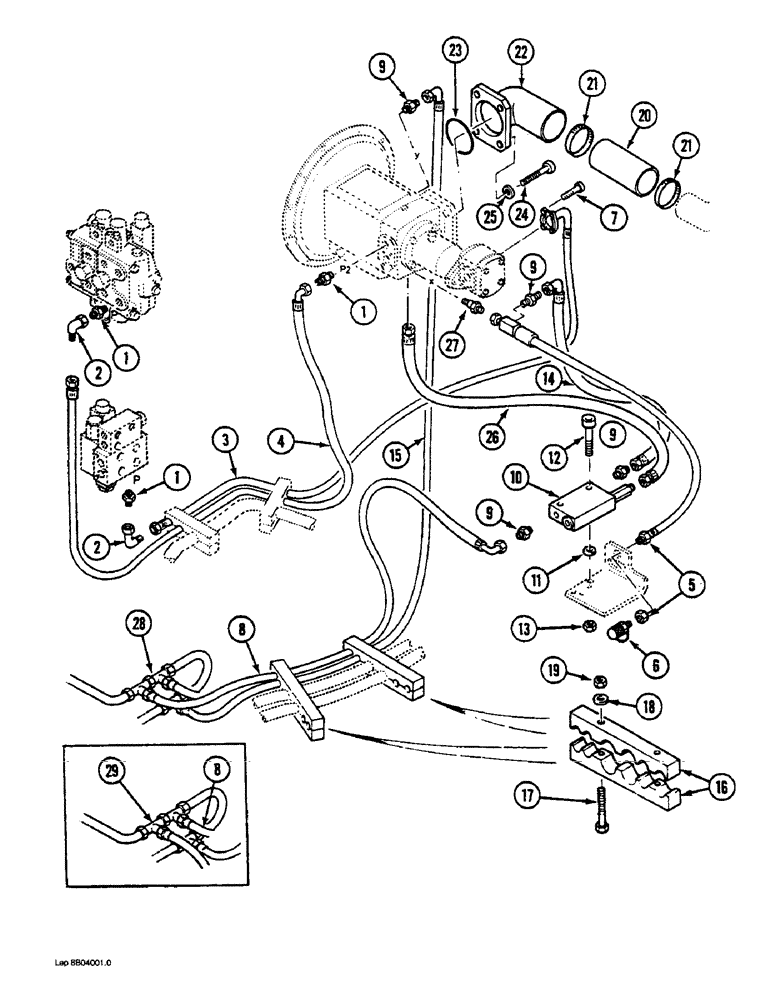

Запчасти Case 1088 (8B-16) - HYDRAULIC PUMP LINES, PUMP TO SWING VALVE, SOLENOID VALVE (08) - HYDRAULICS

1

P3237533

UNION

ADAPTER - straight

3шт.

P1145268

SEAL

- adapter

1шт.

2

P1737021

ANGLE

ELBOW - 90 degree

2шт.

3

P7631936

HOSE

- 2340 mm long, pressure, to solenoid valve

1шт.

P1130446

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

- flange

1шт.

4

P5931977

HOSE

- 2240 mm long, pressure, to swing control valve

1шт.

5

P7331966

HOSE

- 676 mm long, pump to disconnect, (Order P8131917)

1шт.

6

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- disconnect

1шт.

7

P32912

SCREW

BOLT - hex socket, 6 mm x 25 mm

4шт.

8

P7931909

HOSE

- 1250 mm long, leak return, (Replaces P5431940)

1шт.

9

P3237530

UNION

ADAPTER - straight

4шт.

P7046042

SEAL

- adapter

1шт.

10

REF

INSTRUCTION

VALVE - leak return, (See Figure 8B-56)

1шт.

11

P3528794

WASHER

SPACER - bolt, 6 mm thick

4шт.

12

P132970

DEUTZ PART

BOLT - hex, 8 mm x 60 mm

2шт.

13

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

2шт.

14

P7931907

HOSE

- 630 mm long, leak return, pump to filter, (Replaces P5431970)

1шт.

15

P6631968

HOSE

- 1800 mm long, leak return, Serial Range: pump-tee

1шт.

16

P5120388

SHIN

CLAMP - tube

4шт.

17

P933808

SCREW

BOLT - hex, 10 mm x 90 mm

4шт.

18

P3528795

WASHER

SPACER - bolt, 7 mm thick

8шт.

19

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

20

P6631970

LARGE HOSE

HOSE - suction, reservoir to tube at pump

1шт.

21

P1236903

CLAMP

- suction hose

4шт.

22

P4050168

MANIFOLD

TUBE - suction, at pump

1шт.

23

P30490

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

- suction tube

1шт.

24

P32962

SCREW

BOLT - hex socket, 16 mm x 50 mm

4шт.

25

P4328746

WASHER

SPACER - bolt, 11 mm thick

4шт.

26

P5931943

HOSE

- 630 mm long, leak return, pump to anti surge valve

1шт.

27

P4837507

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.

28

REF

INSTRUCTION

HYDRAULIC CIRCUIT - (See Figure 8C-2), Serial Range: 19801-20241

1шт.

28

REF

INSTRUCTION

HYDRAULIC CIRCUIT - (See Figure 8C-2), Serial Range: 106901-106939

1шт.

29

REF

INSTRUCTION

HYDRAULIC CIRCUIT - (See Figure 8C-2), Start Serial: 20242

1шт.

29

REF

INSTRUCTION

HYDRAULIC CIRCUIT - (See Figure 8C- 2), Start Serial: 106940

1шт.
