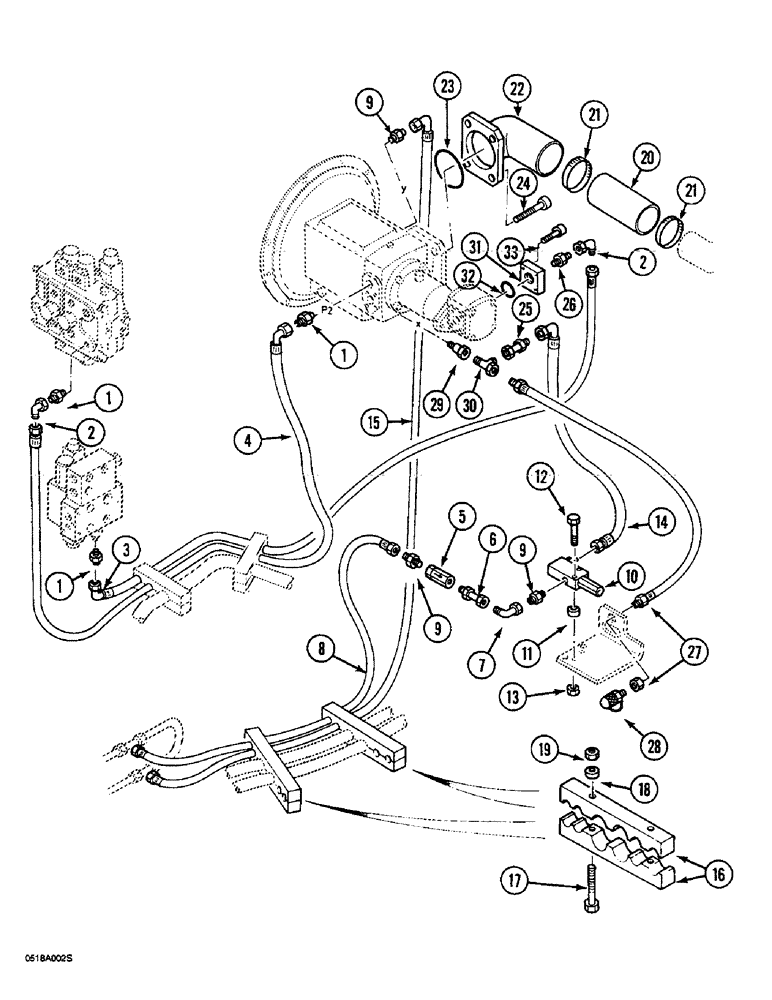

Запчасти Case 1088 (8B-12) - HYDRAULIC PUMP LINES, PUMP TO SWING VALVE, SOLENOID VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
P3237533
UNION
ADAPTER - straight
3шт.
P1145268
SEAL
- adapter
1шт.
2
P1737021
ANGLE
ELBOW - 90 degree
2шт.
3
P5931954
HOSE
- 88-1/4 inch long, pressure, to solenoid valve
1шт.
4
P5931977
HOSE
- 88-1/4 inch long, pressure, to swing control valve
1шт.
5
REF
INSTRUCTION
FILTER ASSEMBLY - leak return, (See Figure 8B-58)
1шт.
6
P3237554
FITTING
ADAPTER - straight
1шт.
7
P1737018
ANGLE
ELBOW - 90 degree
1шт.
8
P5431939
HOSE
- 39-3/8 inch long, leak return, Serial Range: filter-tee
1шт.
9
P3237530
UNION
ADAPTER - straight
3шт.
P7046042
SEAL
- adapter
1шт.
10
REF
INSTRUCTION
VALVE - leak return, (See Figure 8B-54)
1шт.
11
P3528799
WASHER
SPACER - bolt, 4 mm thick
2шт.
12
P833889
SCREW
BOLT - hex head, 6 mm x 50 mm
2шт.
13
P234513
SAFETY NUT
NUT - hex, self-locking, 5 mm
2шт.
14
P5431970
HOSE
- 24-13/16 inch long, leak return, pump to filter, (Order P7931907)
1шт.
15
P6631968
HOSE
- 70-7/8 inch long, leak return, pump to tee, (Order P7931910)
1шт.
16
P4820314
SHIN
CLAMP - tube
4шт.
17
P933808
SCREW
BOLT - hex, 10 mm x 90 mm
4шт.
18
P3528795
WASHER
SPACER - bolt, 7 mm thick
8шт.
19
P34598
SAFETY NUT
NUT - hex, self-locking, 10 mm
4шт.
20
P6631970
LARGE HOSE
HOSE - suction, reservoir to tube at pump
1шт.
21
P1236903
CLAMP
- suction hose
4шт.
22
P3750139
MANIFOLD
TUBE - suction, at pump, (Order 1 @ P4050168, 4 @ P32962, 4 @ P4328746)
1шт.
23
P30490
O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro
- suction tube
1шт.
24
P1332915
SCREW
BOLT - hex socket, 16 mm x 40 mm
4шт.
25
P637380
RESTRICTOR
ADAPTER - straight
1шт.
26
P4037597
UNION
ADAPTER - straight
1шт.
P5746063
SEAL
- adapter
1шт.
27
P6631952
HOSE
- 23-15/16 inch long, Serial Range: pump-disconnect
1шт.
28
P3237549
UNION
DISCONNECT ASSEMBLY - pressure check
1шт.
P7046042
SEAL
- disconnect
1шт.
29
P4037580
UNION
ADAPTER - straight
1шт.
P7046042
SEAL
- adapter
1шт.
30
P937296
TEE
- street, at pump
1шт.
31
P5137766
SHIN
FLANGE - low pressure pump
1шт.
32
P330430
O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro
- flange
1шт.
33
P32912
SCREW
BOLT - hex socket, 6 mm x 25 mm
4шт.
Выбрано товаров: 38
