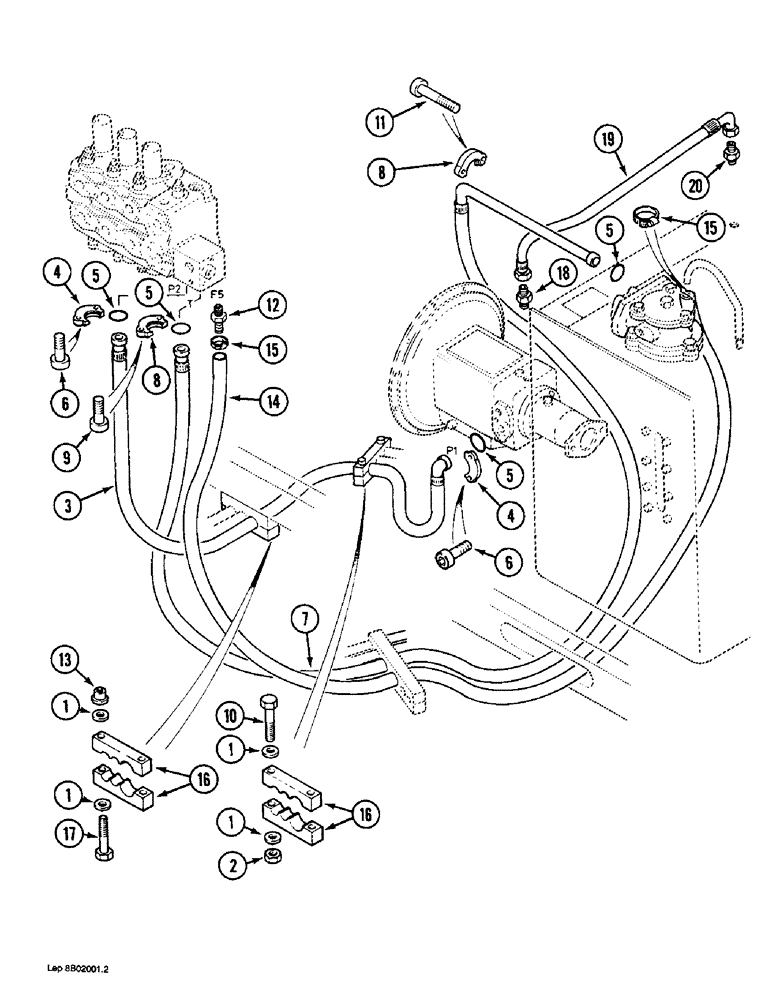

Запчасти Case 1088 (8B-10) - HYD. PUMP LINES, PUMP TO ATTACHMENT CNTRL. VALVE P.I.N. FROM XXXXX & SFT., P.I.N. FROM XXXXX & AFT. (08) - HYDRAULICS

1

P35002

WASHER

- bolt, 8 mm thick

8шт.

2

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

2шт.

3

P6631966

HOSE

- 2000 mm long, pressure, pump to attachment control valve

1шт.

4

P4024267

SHIN

SPLIT FLANGE - hose

4шт.

5

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube flange

4шт.

6

P32944

SCREW

BOLT - hex socket, 12 mm x 40 mm

8шт.

7

P7631924

HOSE

- 2600 mm long, return, attachment control, Serial Range: valve-reservoir

1шт.

8

P4024272

BRACKET

SPLIT FLANGE - hose

4шт.

9

P32933

SCREW

BOLT - hex socket, 10 mm x 30 mm

4шт.

10

P133849

SCREW

BOLT - hex head, sleeve type, 8 mm

2шт.

11

P32932

SCREW

BOLT - hex socket, 10 mm x 25 mm

4шт.

12

P4837545

FITTING

ADAPTER - straight, barb hose type

1шт.

P5746063

SEAL

- adapter

1шт.

13

P35449

RIVET

RETAINER - bolt, sleeve type, 8 mm

2шт.

14

REF

INSTRUCTION

HOSE - 2500 mm long, leak return, cut from P1103635

1шт.

15

P36998

COLLAR CLAMP

CLAMP - hose

2шт.

16

P5120328

SHIN

CLAMP -, Serial Range: hoses-frame

4шт.

17

P133850

SCREW

BOLT - hex head, 8 mm x 25 mm

2шт.

18

P3237533

UNION

ADAPTER - straight

1шт.

P1145268

SEAL

- adapter

1шт.

19

P5431963

HOSE

- 630 mm long, drain, Serial Range: pump-reservoir

1шт.

20

P4037597

UNION

ADAPTER - straight

1шт.

P5746063

SEAL

- adapter

1шт.
