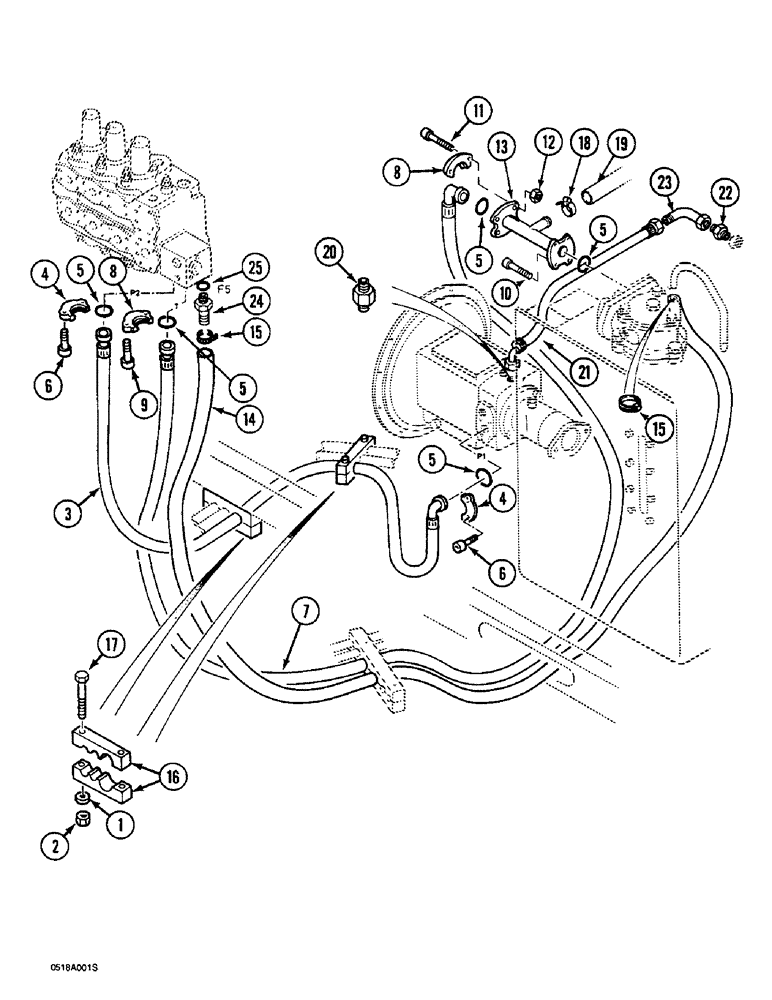

Запчасти Case 1088 (8B-04) - HYDRAULIC PUMP LINES, PUMP TO ATTACHMENT CONTROL VALVE P.I.N. FROM 19801 TO XXXXX (08) - HYDRAULICS

1

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

2

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

3

P6631966

HOSE

- 78-3/4 inch long, pressure, pump to attachment control valve

1шт.

4

P4024267

SHIN

SPLIT FLANGE - hose

4шт.

5

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube flange

5шт.

6

P32944

SCREW

BOLT - hex socket, 12 mm x 40 mm, grade 10.9

8шт.

7

P6531971

HOSE

- 98-1/2 inch long, return, attachment control, Serial Range: valve-reservoir

1шт.

8

P4024272

BRACKET

SPLIT FLANGE - hose

4шт.

9

P732911

SCREW

BOLT - hex socket, 10 mm x 30 mm, grade 10.9

4шт.

10

P532988

SCREW

BOLT - hex socket, 10 mm x 25 mm, grade 10.9

4шт.

11

P1332953

SCREW

BOLT - hex socket, 10 mm x 45 mm, grade 10.9

4шт.

12

86500689

NUT,M10 x 1.5, Cl 10

4шт.

13

P55654

MANIFOLD

TUBE - return, Serial Range: filter-hose

1шт.

14

REF

INSTRUCTION

HOSE - 98-1/2 inch long, leak return, cut from P1103635

1шт.

15

P36998

COLLAR CLAMP

CLAMP - hose

2шт.

16

P4820315

SHIN

CLAMP -, Serial Range: hoses-frame

4шт.

17

P933808

SCREW

BOLT - hex, 10 mm x 90 mm

4шт.

18

P36998

COLLAR CLAMP

CLAMP - hose

1шт.

19

REF

INSTRUCTION

HOSE - return, (See Figure 8B-12 for continuation of circuit)

1шт.

20

P3237533

UNION

ADAPTER - straight

1шт.

P1145268

SEAL

- adapter

1шт.

21

P5431963

HOSE

- 24-13/16 inch long, drain, Serial Range: pump-reservoir

1шт.

22

P4037597

UNION

ADAPTER - straight

1шт.

P5746063

SEAL

- adapter

1шт.

23

P1737021

ANGLE

ELBOW - 90 degree

1шт.

24

P4837545

FITTING

ADAPTER - straight, barb hose type, (Replaces P3237582)

1шт.

25

P5746063

SEAL

- adapter

1шт.
