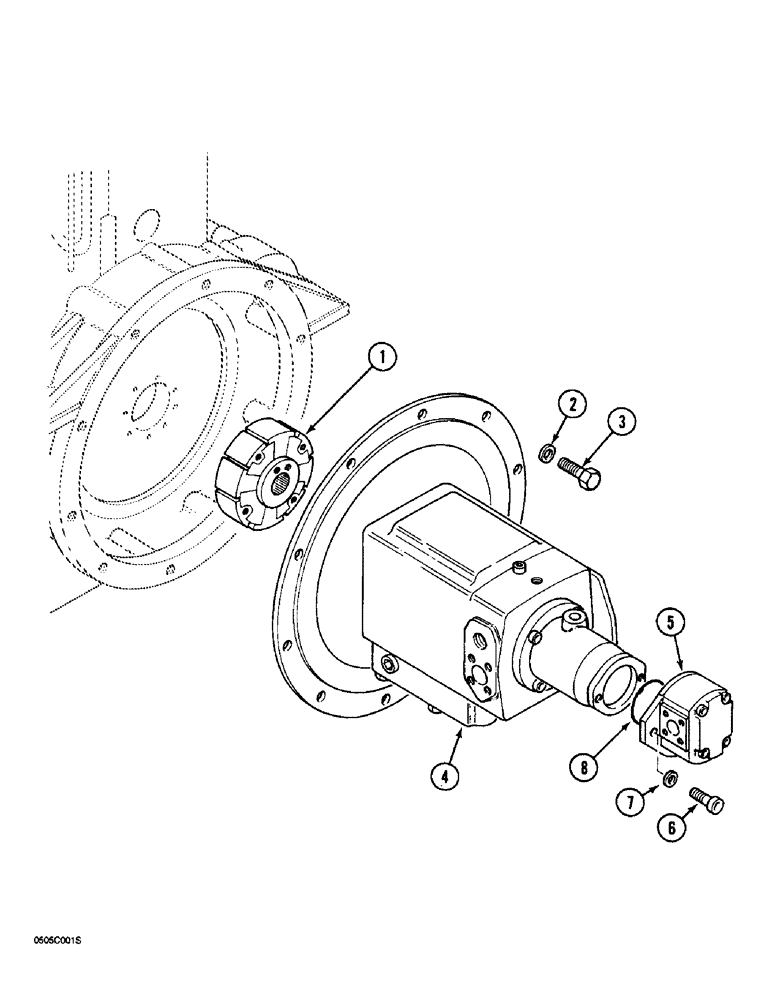

Запчасти Case 1088 (8B-02) - HIGH PRESSURE HYDRAULIC PUMP COUPLING (08) - HYDRAULICS

1

P7946242

COUPLING, BREAK AWAY

COUPLING - motor to main hydraulic pump

1шт.

P32962

SCREW

BOLT - coupling, integral, 16 mm x 50 mm, not shown, (See SAT Info 58)

4шт.

2

P4328796

WASHER

SPACER - bolt, 7 mm thick

12шт.

3

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

12шт.

4

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - high pressure, (See Figures 8B-34 and 8B-36)

1шт.

5

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - low pressure, (See Figure 8B-32)

1шт.

6

P32931

SCREW

BOLT - hex socket, 10 mm x 20 mm, pump mounting to high pressure pump body

2шт.

7

P1545410

WASHER

SPACER - bolt, 2 mm thick

2шт.

8

P2030429

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

- low pressure pump to high pressure pump housing, 1.78 mm x 82.27 mm, (See TIN 3149), Serial Range: 19801-XXXXX

1шт.

8

P3230409

GASKET

O-RING - low pressure pump to high pressure pump housing, 2.00 mm x 84.00 mm, Start Serial: XXXXX

1шт.

8

P3230409

GASKET

O-RING - low pressure pump to high pressure pump housing, 2.00 mm x 84.00 mm, Serial Range: 106901-XXXXX

1шт.
