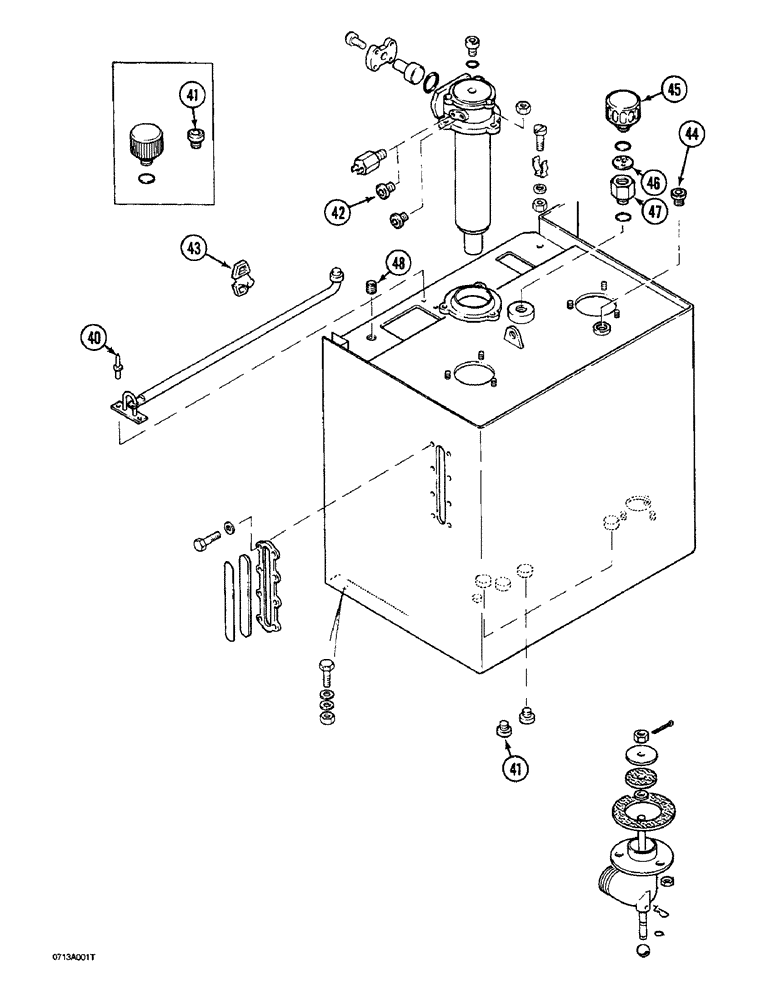

Запчасти Case 1088 (8A-4) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

40

P35418

RIVET

- pop, 8 mm x 17mm, Serial Range: rod-panel

2шт.

41

P2537413

PLUG

- reservoir, Serial Range: 19801-XXXXX

1-2шт.

P1145268

SEAL

- plug

1шт.

42

P2537448

PLUG

- oil filter, Start Serial: XXXXX

1шт.

42

P2537448

PLUG

- oil filter, Start Serial: 106901

1шт.

P2230441

SEAL

- plug

1шт.

43

P3036926

BASE

RETAINER - harness strap

1шт.

44

P3337446

PLUG

- reservoir, at the top, Start Serial: 19801

1шт.

P1145268

SEAL

- plug

1шт.

45

P2950562

BREATHER

- hydraulic reservoir, (Replaces P2950519), Start Serial: XXXXX

1шт.

45

P2950562

BREATHER

- hydraulic reservoir, (Replaces P2950519), Start Serial: 106901

1шт.

46

P3545029

WASHER

- special, at adapter, Start Serial: XXXXX

1шт.

46

P3545029

WASHER

- special, at adapter, Start Serial: 106901

1шт.

47

P4837510

FITTING

ADAPTER - breather to reservoir, Start Serial: XXXXX

1шт.

47

P4837510

FITTING

ADAPTER - breather to reservoir, Start Serial: 106901

1шт.

48

P3441407

GROMMET

- harness

1шт.
