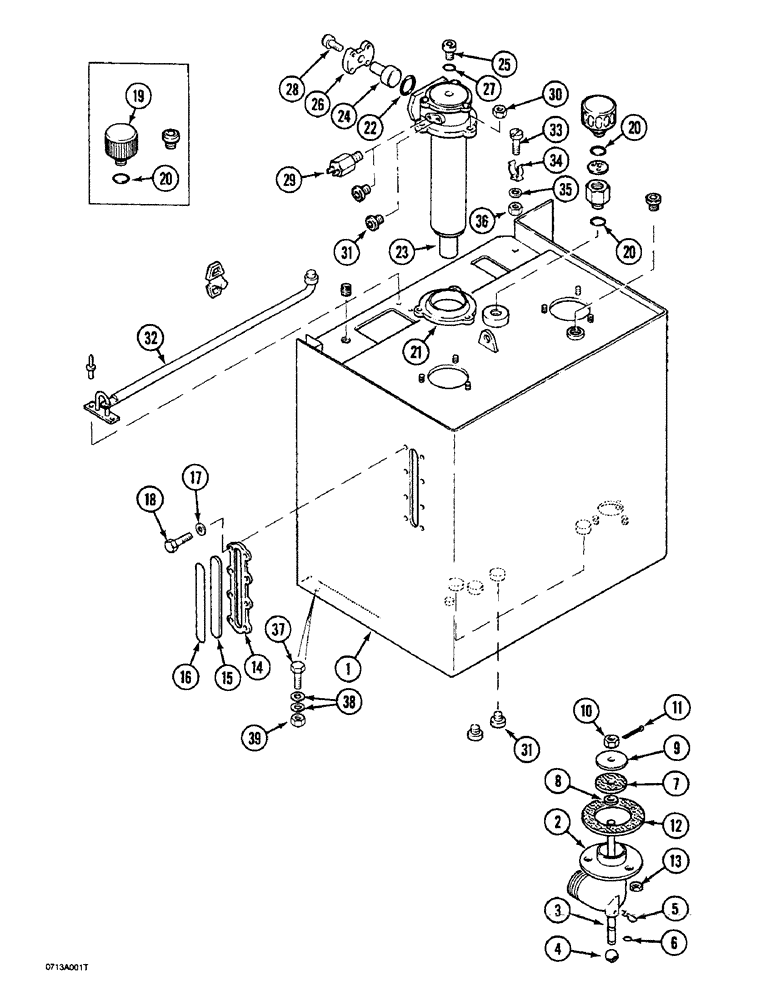

Запчасти Case 1088 (8A-2) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

P1540278

RESERVOIR, HYDRAULIC

RESERVOIR - hydraulic oil, (Order P2440204), Serial Range: 19801-20222

1шт.

1

P1540278

RESERVOIR, HYDRAULIC

RESERVOIR - hydraulic oil, (Order P2440204), Serial Range: 106901-106909

1шт.

1

P2440204

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic oil, Start Serial: 20223

1шт.

1

P2440204

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic oil, Start Serial: 106910

1шт.

P837851

VANEUM GAUGE

SHUTOFF VALVE ASSEMBLY - hydraulic, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - shutoff valve

1шт.

3

P2127986

STEM

ROD - shutoff control

1шт.

4

P152059

BALL KNOB

KNOB - control rod

1шт.

5

P36016

SPLIT PIN/SAFETY PIN

PIN - retainer

1шт.

6

P1930415

O-RING

- control rod

1шт.

7

P8846013

SEAL

GASKET - shutoff plate

1шт.

8

P2745413

WASHER

- special, shutoff rod

1шт.

9

P1846384

WASHER

PLATE - shutoff

1шт.

10

P34303

NUT

- hex, slotted

1шт.

11

P35510

SPLIT PIN

COTTER PIN - 2mm x 20 mm

1шт.

12

P7546084

SEAL

GASKET -, Serial Range: valve-reservoir

1шт.

13

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

3шт.

14

P423428

BODY

RETAINER - sight gauge

1шт.

15

P22485

SIGHTGLASS

LENS - sight gauge

1шт.

16

P130487

O-RING

- lens

1шт.

17

P28428

WASHER - special, sealing

8шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

8шт.

19

P1950543

BREATHER

- hydraulic reservoir, Serial Range: 19801-XXXXX

1шт.

20

P245217

WASHER, SEALING

SEAL -, Serial Range: breather-reservoir

2шт.

21

P8846035

SEAL

- cover

1-2шт.

22

P1230493

O-RING

- tube plug

2шт.

23

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic return oil, (See Figure 8A-6)

2шт.

24

P5327844

BLANK-OFF PLUG

PLUG - tube

2шт.

25

P1337409

PLUG

- filler

2шт.

26

P4024263

SHIN

SPLIT FLANGE - tube plug

2шт.

27

P130469

O-RING,40.95MM ID x 2.62MM Width

- plug

2шт.

28

P32941

SCREW

BOLT - hex socket, 12 mm x 25 mm

8шт.

29

P1241851

ELECTRO/HYD CONTACT

SENDER - filter restriction indicator

1-2шт.

30

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

6шт.

31

P2537429

PLUG

- reservoir drain

6шт.

P5746063

SEAL

- plug, not shown

1шт.

32

P1136603

STAND

ROD - support, engine access cover

1шт.

33

P32529

SCREW,Hex Soc Hd, M4 x 16

- slotted, 4 mm x 16 mm

1шт.

34

P1736995

FASTENER

CLIP - support rod

1шт.

35

P4328717

WASHER

SPACER - screw, 3 mm thick

1шт.

36

P34107

NUT - hex, 4 mm

1шт.

37

P33866

SCREW

BOLT - hex, 20 mm x 75 mm

4шт.

38

P4328747

WASHER

SPACER - bolt, 14 mm thick

8шт.

39

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

4шт.
