(7-24) - LEVELER HYDRAULIC CONTROL VALVE, CYLINDER CHECK VALVE, P.I.N FROM 106901 AND AFTER

Запчасти Case 1088 (7-24) - LEVELER HYDRAULIC CONTROL VALVE, CYLINDER CHECK VALVE, P.I.N FROM 106901 AND AFTER (07) - BRAKES

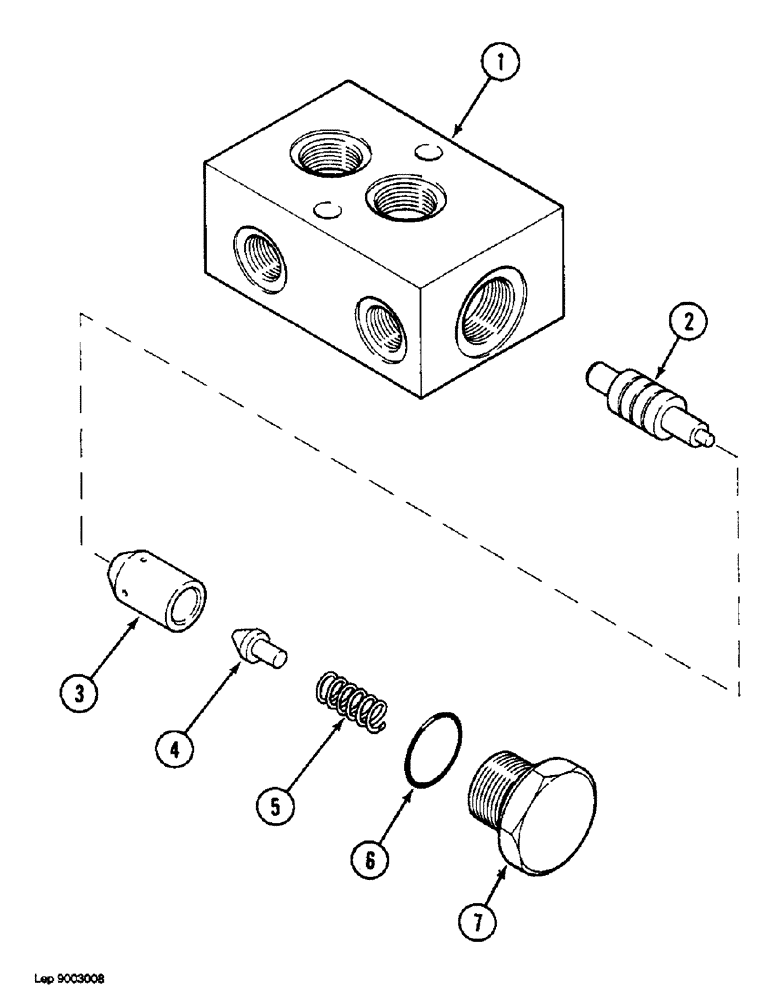

Схема запчастей Case 1088 - (7-24) - LEVELER HYDRAULIC CONTROL VALVE, CYLINDER CHECK VALVE, P.I.N FROM 106901 AND AFTER (07) - BRAKES
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P5837717

SHIN

VALVE ASSEMBLY - cylinder check valve, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

3

P2329835

SPOOL - valve, (Replaces P929458)

1шт.

4

P5627838

VALVE POPPET

POPPET - spool

1шт.

5

P38169

COMPRESSION SPRING

SPRING - valve

1шт.

6

P130478

O-RING

- 1.78 x 25.12 mm, plug

1шт.

7

P1637425

PLUG

CAP - valve spool

1шт.
